Plan Description

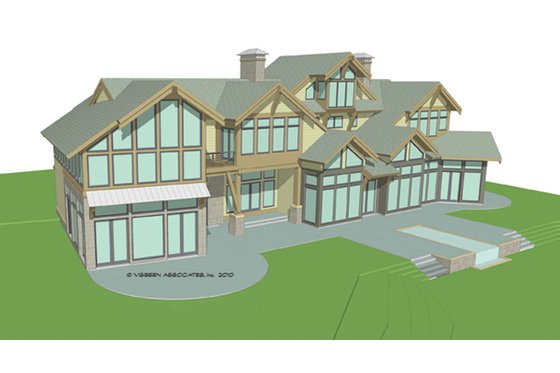

The Carlton Shores by Visbeen Architects harkens back to the Arts & Crafts movement, while at the same time exuding contemporary appeal. Simplicity rules the interior of the home, letting the dramatic views shine. Every wall is dominated by glass to create a spacious, open atmosphere. The angled wooden staircase with its high ceiling gives the impression of climbing into the trees. A soaring two-story vaulted ceiling covers the indoor pool area, which includes a kitchenette and sitting room. In the main gathering areas, the kitchen island seats six and opens to the living room. Upstairs, the ultra-deluxe master suite includes a spacious fireplace-warmed bedroom, private deck with room for a tub, a large shower, and walk-in closet that opens directly to the laundry room. A bonus guest apartment treats visitors with a private kitchenette, living area, and bedroom. This home was recognized at the 2012 American Residential Design Awards in the Custom Luxury category.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

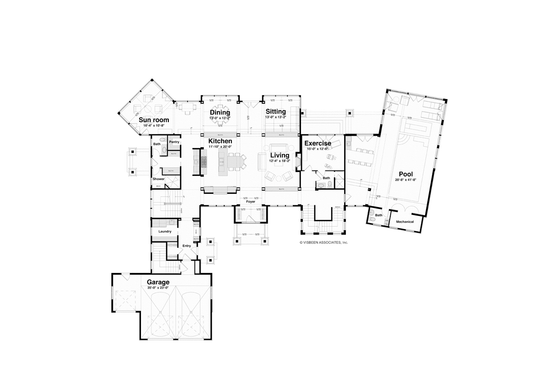

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

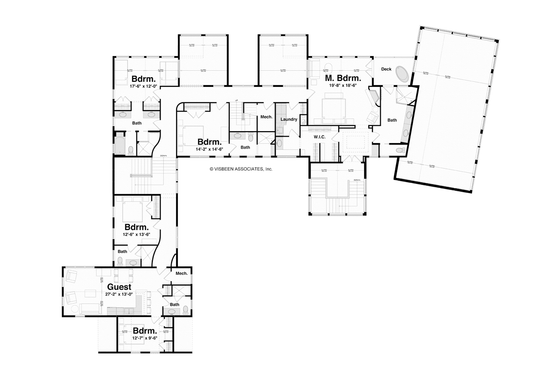

Floor Plan - Upper Floor

Floor Plan - Other Floor

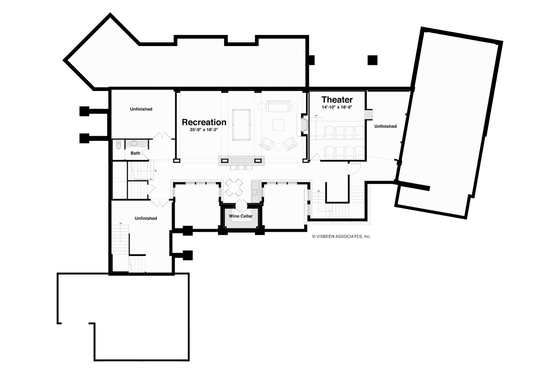

Floor Plan - Lower Floor

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 6
Stories: 3
Garages: 2

Dimension

Depth : 94'
Height : 39' 4"
Width : 120' 6"

Area

Total : 7829 sq/ft
Basement Living: 1655 sq/ft height 10'
Bonus: 634 sq/ft
First Floor: 3236 sq/ft height 12'
Second Floor: 2694 sq/ft height 9'
Third Floor: 244 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Open Floor Plan
Storage Area
Sunroom
Upstairs Laundry
Wine Cellar
Workshop

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch

Rooms

Bedroom 2:

width 17' 6" x depth 12'

Bedroom 3:

width 12' 6" x depth 13' 6"

Bedroom 4/Guest Bedroom:

width 12' 7" x depth 9' 6"

Bedroom 5:

width 15' 10" x depth 14' 6"

Dining:

width 13' x depth 13' 2"

Exercise Room:

width 15' x depth 12' 6"

Garage:

width 35' x depth 23'

Guest Living Area:

width 27' 2" x depth 13'

Kitchen:

width 11' 10" x depth 20'

Living Room:

width 12' 4" x depth 18' 2"

Master Bedroom:

width 19' 8" x depth 18' 6"

Pool:

width 20' 8" x depth 41' 8"

Recreation:

width 35' x depth 16' 3"

Sun Room:

width 16' 4" x depth 10' 8"

Theater:

width 14' 10" x depth 18' 6"

What's included in this plan set


See a sample plan set

Please note: If you are building this plan in the state of Michigan, please give us a call to confirm availability. The designer has some geographic restrictions in Michigan.
