Plan #126-164

Key Specs


  • 833 sq ft

  • 1 Bedroom

  • 1 Bathroom

  • 2 Floors

  • 2 Garage

Plan Description

This attractive garage plan features a one bedroom loft suite with a vaulted ceiling in the living area. The spacious garage area and carport give you all you need for parking and storage, or any project you have on the go.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

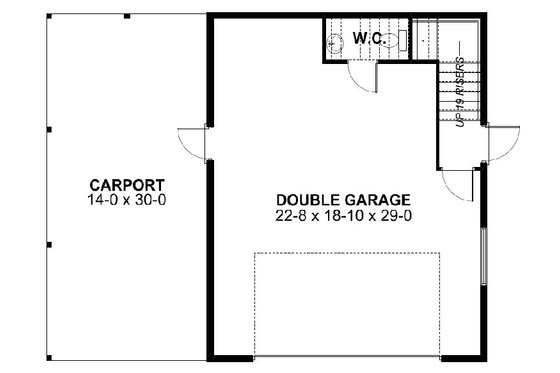

Floor Plan - Lower Floor Plan
Traditional Style House Plan - 1 Beds 1 Baths 833 Sq/Ft Plan #126-164 Floor Plan - Lower Floor Plan - Houseplans.com

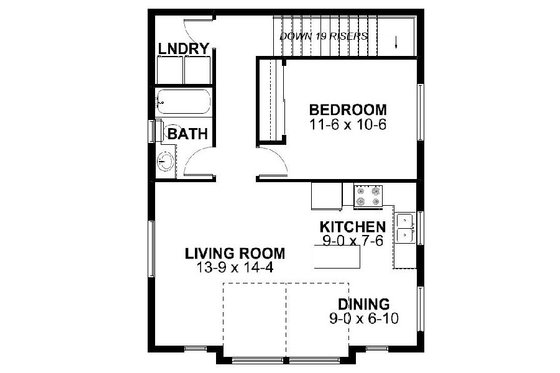

Floor Plan - Main Floor Plan
Traditional Style House Plan - 1 Beds 1 Baths 833 Sq/Ft Plan #126-164 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 1
Baths : 1
Stories : 2
Garage Stalls : 2

Dimension

Depth : 30'
Height : 27'
Width : 38'

Area

Garage Sq Ft : 619 sq ft
Main Floor Sq Ft : 732 sq ft
Lower Floor Sq Ft : 101 sq ft
Total Sq Ft : 833 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling Ft : 10'
Main Ceiling Ft : 8'
Ceiling Details : Vaulted Ceiling in Loft Living Area

Roof

Roof Type : Asphalt Shingles
Primary Pitch : 6:12
Roof Framing : truss/stick
Roof Load : 65
Secondary Pitch : 4:12

Exterior Wall Framing

Insulation : R-22
Framing : 2"x6"
Exterior Wall Finish : Stucco

Bedroom Features

Upstairs Bedrooms

Kitchen Features

Kitchen Island
Breakfast Nook

Additional Room Features

Great Room Living Room
Upstairs Laundry

Garage Features

Garage Under
Carport Porte Cochere
Oversized Garage
Front Entry Garage

Code Compliance

Irc 2006
Nbcc

Structural Information Provided

Structural Calculations
Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing
Structural 2nd Floor Framing
Structural Notes

What's included in this plan set

See a sample plan set

  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details
  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $575.00 5 printed plan sets mailed to you.
8 Copy Set $675.00 8 printed plan sets mailed to you.
Reproducible Set $725.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1150.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $495.00 One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $50.00 Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $100.00 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
