Plan 517-1

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

The contemporary 1 bedroom Cocoon Cottage is all about easy indoor-outdoor living. It opens to the outdoors through window walls and patios. Windows on more than one side of each major room balance the light. Modern features include concrete and wood frame construction, an open-plan living/dining/kitchen, a sliding barn door closing off the utility area, and a carport that extends the roofline. It's a modern vacation cabin that's designed to complement nature.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

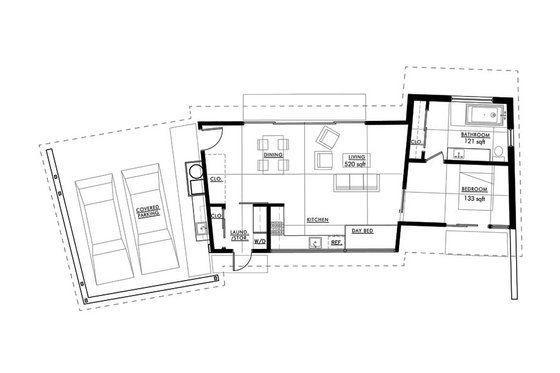

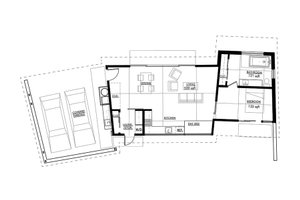

Floor Plan - Main Floor

BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

Full Specs & Features

Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 2


Depth : 37'
Height : 11'
Width : 71'


Total : 860 sq/ft
Main Floor : 860 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Sloped Ceiling: 7'4" - 8'8"
Main Ceiling : 8'


Roof Framing : stick

Exterior Wall Framing

Framing : 2"x6"

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For View Lot


Suited For Vacation Home

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options

5 Copy Set

5 printed plan sets mailed to you.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer

Feldman Architecture, Inc

Feldman Architecture, Inc -
“Beauty is found in quiet understated forms, expressive structure, timeless materials, and carefully resolved details. Our designs celebrate light-filled open spaces with a strong connection to the site and landscape.” Feldman Architecture is an award-winning residential design practice recognized for creating warm, light-filled spaces that are site-sensitive and carefully detailed. Highly collaborative in nature, the firm approaches design as a dialogue between client, design team, and site. Each project is an opportunity to create an innovative solution relevant to the project environs and tailored to a client's needs. Traditional material palettes such as concrete, wood, and steel, are used with new materials to create timeless forms. Dedication to environmental responsibility is fundamental to Feldman Architecture's philosophy. Constructing and operating buildings is resource intensive and Feldman Architecture strives to minimize this impact by designing energy-efficient buildings that incorporate sustainable technologies and renewable materials. A growing public awareness of the importance of this mission and the proliferation of products and techniques that enable responsible construction is inspirational. Designers explore innovative and expressive ways to apply sustainable technologies and adaptations to traditional solutions which complement the firm's contemporary designs. The firm's Caterpillar project has earned the USGBC's LEED Platinum distinction, the first custom home of California's Central Coast to reach Platinum status and only the ninth in Northern California. Feldman Architecture connects with the public and industry leaders through speaking engagements,, a blog that shares information about green technologies and sustainable architecture, and by hosting home tours.
