Plan 426-16

Photographs may show modified designs.
Plan 426-16

Key Specs


877
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

Plan Description


The T-shaped plan makes for a very airy, light-filled design. The two bedrooms and bath occupy the top or crossbar leg of the T; the living room/kitchen, and deck form the other leg. The kitchen includes a buffet/food prep peninsula. This home would work well as a getaway cabin where easy indoor outdoor living is essential.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

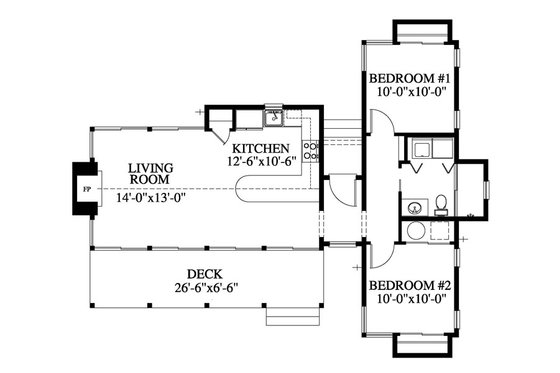

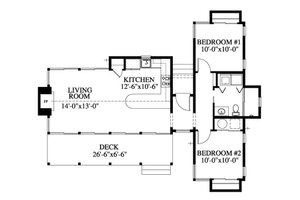

Floor Plan - Main Floor Plan

Reverse
Contemporary Floor Plan - Main Floor Plan Plan #426-16

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 38'
Height : 16'
Width : 47'

Area

Total : 877 sq/ft
Decks : 172 sq/ft
Main Floor : 877 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 8:12
Roof Type : Truss
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : HARDI PLANK SIDING
Framing : 2"x6"
Insulation : R19

More

Suited For Vacation Home

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$575.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$675.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$675.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1150.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Pier

$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
