Key Specs


983
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

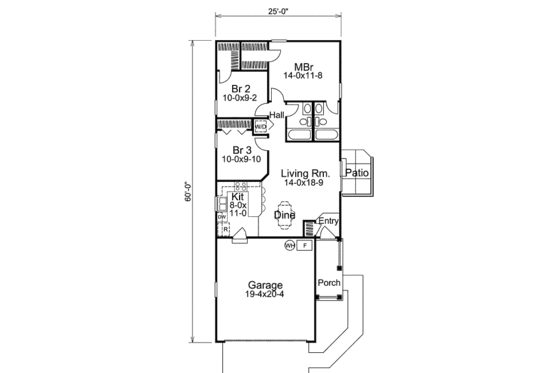

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 60'
Height : 18'
Width : 25'

Area

Total : 983 sq/ft
First Floor: 983 sq/ft height 8'
Garage: 393 sq/ft height 8'
Porch: 66 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 40
Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"
Insulation : R13

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room
Storage Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Empty Nester

Rooms

Bedroom 2:

width 10' x depth 9' 2"

Bedroom 3:

width 10' x depth 9' 10"

Garage:

393 sq/ft width 19' 4" x depth 20' 4"

Kitchen:

width 8' x depth 11'

Living Room:

width 14' x depth 18' 9"

Master Bedroom:

width 14' x depth 11' 8"
