Plan #933-5

Key Specs


  • 991 sq/ft

  • 2 Bedrooms

  • 2 Baths

  • 1 Floor

  • No Garage

Plan Description

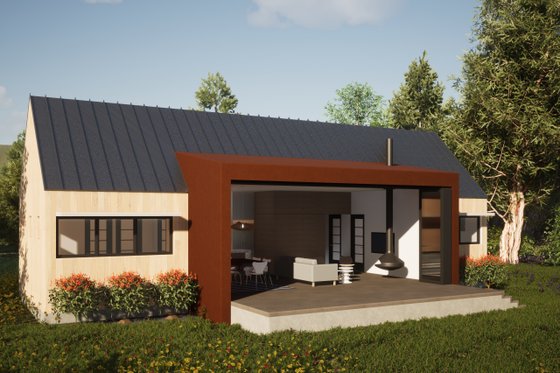

The pleasantly compact Guest House with its spacious Great Room can also be a primary residence. At 971 SF, it is right sized for a family of one to three members. The simple layout and design keeps all the action close to the center. The large south glass wall allows for a seamless connection between indoors and out making the house seem much larger than it is. Some features that promote an environmentally sustainable and healthy structure and is affordable to maintain as the building ages are as follows: • The building shell is super insulated and uses a traditional 2x6 framing wall with 4” of external rigid insulation. • The super insulation together with a smaller building size means that the house will use less energy to heat and cool it. • Durable, low-maintenance exterior grade wood and metal for the exterior finishes reduce long term maintenance costs. • Traditional framing methods make it easy to find local labor, while using “Advanced Framing” reduces the overall amount of lumber, compensating for the added costs in other materials like exterior insulation. • Oriented around a southern exposure to get the optimum solar access. • The roofline accommodates sufficient space for solar panels (especially on the garage). Heavier insulation and good daylight exposure can also reduce the quantity of solar panels required. • Interior materials are specified to be low or no VOC to provide a healthy indoor air quality.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

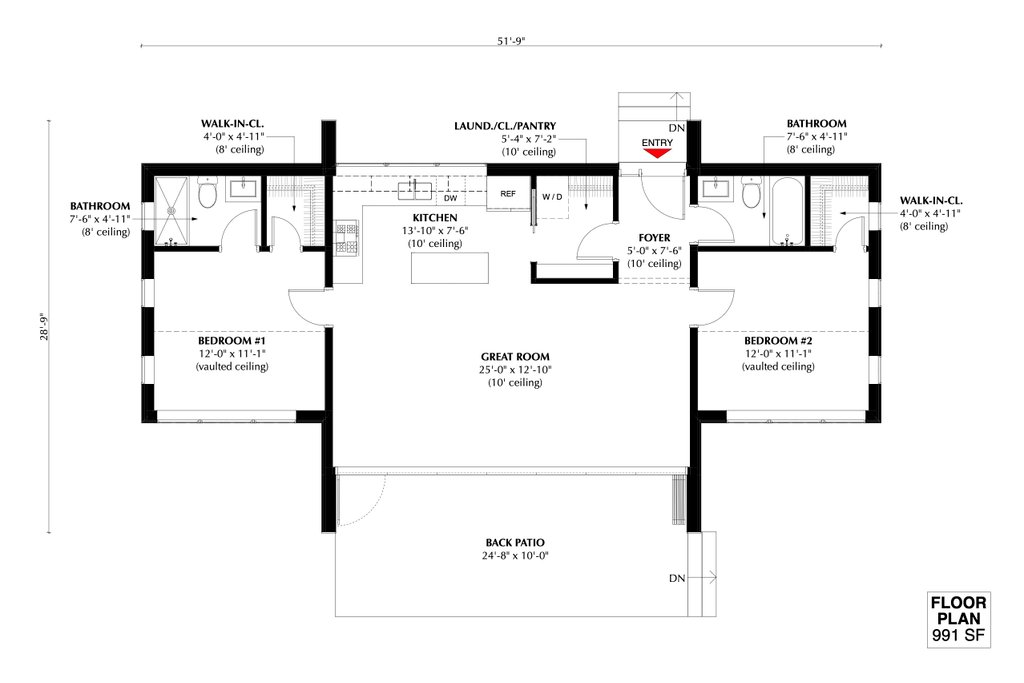

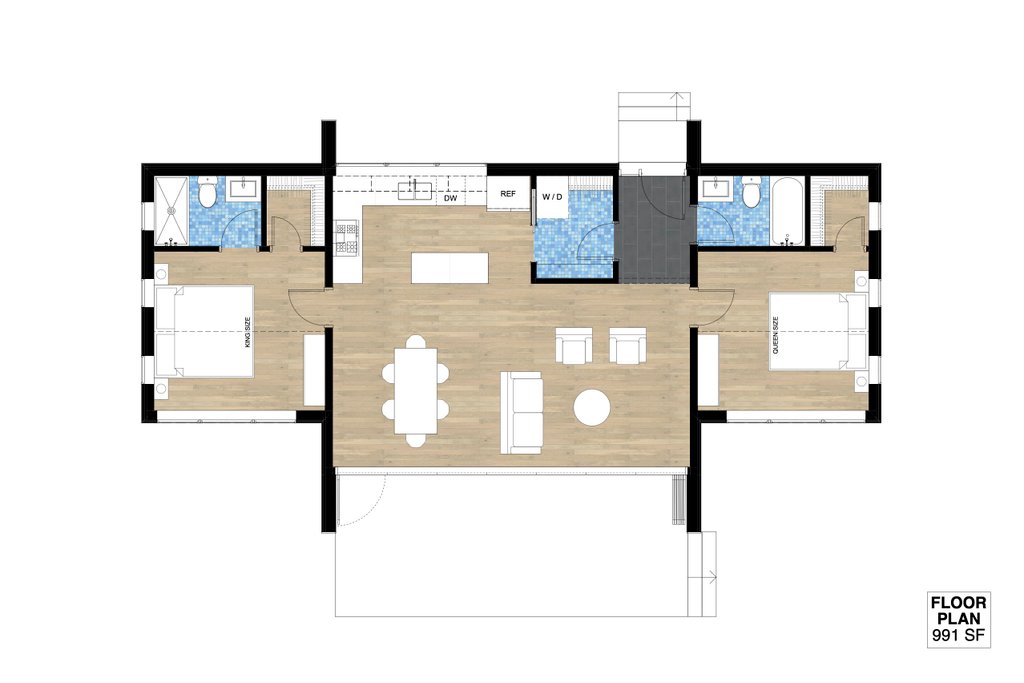

Floor Plan - Main Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 2
Baths : 2
Stories : 1
Garages : 0

Dimension

Height : 20' 8"
Width : 51' 10"
Depth : 28' 10"

Area

Total : 991 sq/ft
Main Floor : 991 sq/ft
Decks : 252 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Upper Ceiling Ft : 10'

Roof

Secondary Pitch : 2:12
Primary Pitch : 12:12

Exterior Wall Framing

Insulation : R41
Exterior Wall Finish : Wood Siding
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Main Floor Laundry
Great Room Living Room

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot
Suited For Corner Lot

Outdoor Spaces

Covered Rear Porch
Grill Deck Sundeck

More

Empty Nester
Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $675.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set $945.00 5 printed plan sets mailed to you.
8 Copy Set $1035.00 8 printed plan sets mailed to you.
CAD Set $1305.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Meet the Designer - Yamaguchi Martin Architects

Yamaguchi Martin Architects - Houseplans.com
"We approach a house design with the idea of creating a home that is not too big or too small but right-sized, with long-lasting, environmentally sensitive materials and techniques. A house that fits a personal lifestyle allows the owner to enjoy their home for life."
Yamaguchi Martin Architects was established in 2011 and is located in Denver, Colorado, by two founding partners who worked for architectural firms for 14 years. Both partners are architecture graduates of the University of Oregon. We have licenses in Colorado and New York and have completed projects in Colorado, Michigan, and California.

We believe that a house can be affordable to build and maintain if the design considers living with "just what we need”. Keeping rooms simple and compact and eliminating wasteful circulation leads to right-sizing of the house. At the same time, each house design has a unique space or quality making the house special and enjoyable. Keeping with that intent, our Construction Documents specify permanent materials which are environmentally sustainable and easy to maintain for years. They also include building techniques which reduce waste of materials and time. Additionally, a super-insulated building envelope with ample south exposure and proper shading allows the house to reduce its reliance on utilities to maintain itself.

Our house design principle is; Simple Living with “just what we need,” using sustainable techniques to achieve healthy living, while keeping construction, operation, and maintenance costs to a minimum.
