Plan 118-166
Photographs may show modified designs.
Home  >  Style  >  Traditional

Traditional Style Plan 118-166

Key Specs


Plan Sq Ft

0
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

0
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$135.00
$35.10
$90.00
Subtotal
NOW $670.50
You save $74.50
(10% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

0
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

0
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Plan Description


This traditional design floor plan is 0 sq ft and has 0 bedrooms and 0 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

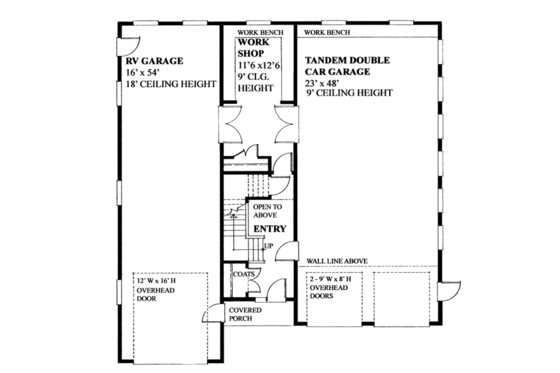

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 0
Stories: 2
Garages: 3

Dimension

Depth : 55'
Height : 29' 6"
Width : 52' 6"

Area

Total : 0 sq/ft
Bonus: 1280 sq/ft
Garage: 2111 sq/ft
Porch: 46 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Additional Room Features

Loft
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop

Garage Features

Front Entry Garage
RV Garage
Tandem Garage

Outdoor Spaces

Balcony
Covered Front Porch

Rooms

Bonus/Storage 1:

width 11' 6" x depth 23' 9"

Bonus/Storage 2:

width 23' x depth 38' 6"

Covered Front Porch:

46 sq/ft

Entry:

233 sq/ft

RV Garage:

935 sq/ft width 165' x depth 54'

Tandem Double Garage:

1176 sq/ft width 23' x depth 48'

Workshop:

285 sq/ft width 11' 6" x depth 12' 6"
