Plan Description


This gorgeous getaway cottage has everything a vacation home needs: lots of outdoor living space, an open kitchen ideal for pancake breakfasts, and enough space for guests. On the main floor, the kitchen's island offers bar seating for casual meals. Nearby, the great room opens up to the sundeck via French doors. A guest bedroom has use of a full bath. Upstairs, step out to your private balcony from the master bedroom to enjoy fresh breezes, or peer downstairs from the interior windows. Another bedroom and a full bathroom round out the level.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

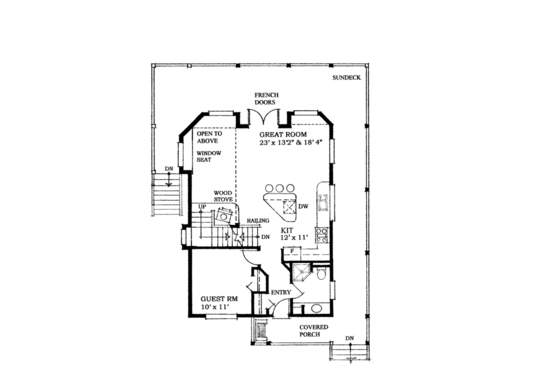

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

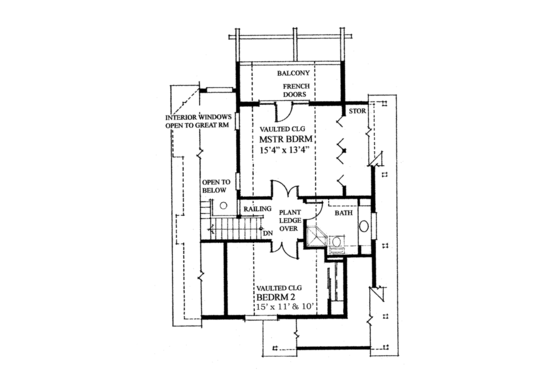

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 0

Dimension

Depth : 47'
Height : 29'
Width : 36'

Area

Total : 1370 sq/ft
Basement Unfinished: 768 sq/ft
First Floor: 795 sq/ft
Second Floor: 575 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Guest Suite
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry

Outdoor Spaces

Balcony
Deck

Rooms

Bedroom 2:

width 15' x depth 11'

Great Room:

width 23' x depth 18' 6"

Guest Suite:

width 10' 8" x depth 11'

Master Bedroom:

width 15' 4" x depth 13' 4"
