Plan 45-427

Photographs may show modified designs.
Plan 45-427

Key Specs


1392
sq ft

0
Beds

0
Baths

1
Floors

4
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

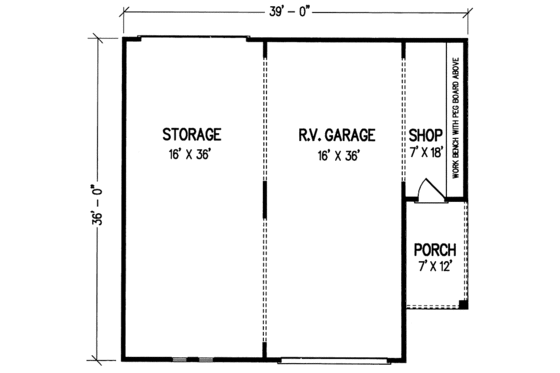

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 0
Stories: 1
Garages: 4

Dimension

Depth : 36'
Height : 30'
Width : 40'

Area

Total : 1392 sq/ft
First Floor: 1278 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Additional Room Features

Workshop

Garage Features

Detached Garage
RV Garage

Rooms

Garage:

576 sq/ft width 16' x depth 36'

Porch - Right:

84 sq/ft width 7' x depth 12'

Shop:

126 sq/ft width 7' x depth 18'

Storage:

576 sq/ft width 16' x depth 36'
