Plan Description

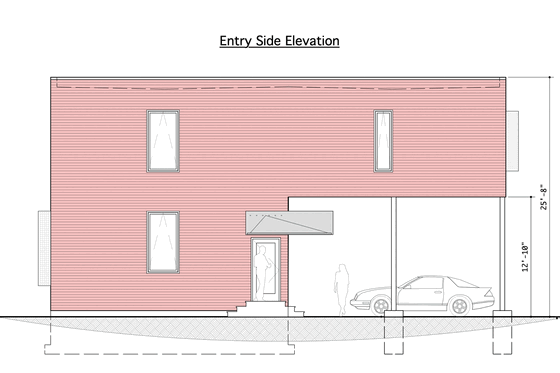

Bold style for the big city: this 1,000-square-foot design fits nicely on a narrow lot. The main level presents a very open layout, while two bedrooms reside upstairs. Here's a cool touch: the hidden sleeping nook on the mezzanine level, making a fun and discreet place for out-of-town guests to stay.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

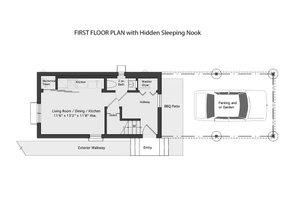

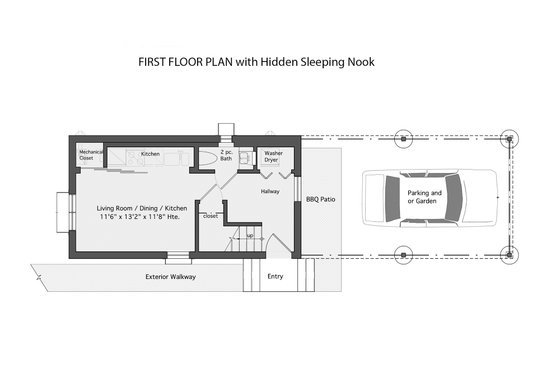

Floor Plan - Main Floor Plan

Reverse
Modern Floor Plan - Main Floor Plan Plan #905-5

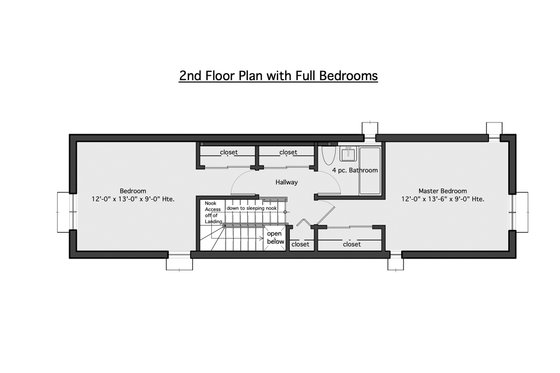

Floor Plan - Upper Floor Plan

Reverse
Modern Floor Plan - Upper Floor Plan Plan #905-5

Floor Plan - Other Floor Plan

Reverse

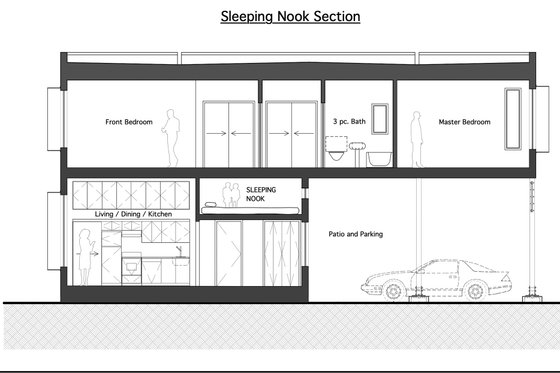

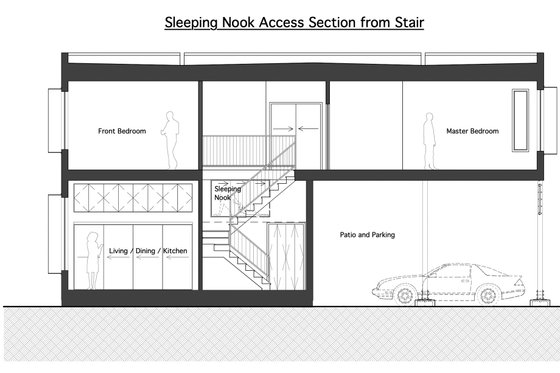

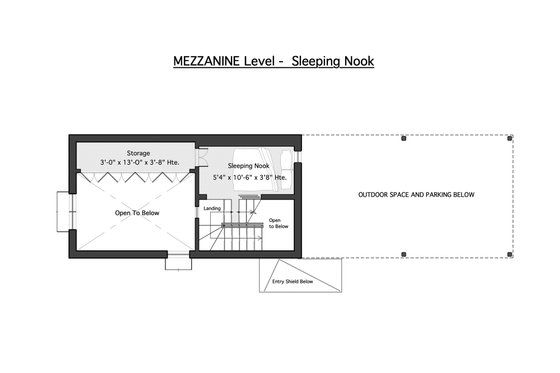

Mezzanine Level - Sleeping Nook

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 2
Garages: 1

Dimension

Depth : 48' 9"
Height : 25' 8"
Width : 13' 6"

Area

Total : 1000 sq/ft
Bonus : 56 sq/ft
Garage : 168 sq/ft
Main Floor : 343 sq/ft
Patios : 151 sq/ft
Porch : 34 sq/ft
Upper Floor : 657 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 3' 10"
Main Ceiling : 11' 2"
Upper Ceiling Ft : 9'

Roof

Roof Framing : 2x10 Joists
Roof Load : 40 PSF

Exterior Wall Framing

Exterior Wall Finish : Siding Vinyl/Aluminum or Hardiboard
Framing : 2x6 SPF
Insulation : Rock Wool or High Density Foam

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms

Additional Room Features

Main Floor Laundry
Unfinished Future Space

Lot Characteristics

Suited For Narrow Lot
Zero Lot Lines

More

Economical To Build
Unusual Shape

Rooms

Bedroom 1:

width 12' x depth 13'

Living Rm/Dining/Kitchen:

width 11' 6" x depth 13' 2"

Master Bedroom:

width 12' x depth 13' 6"

Sleeping Nook:

width 5' 4" x depth 10' 6"

Storage:

width 3' x depth 13'
