This is a house design with many of the "most-requested" features. The
home features an open floor plan layout for the living area. Additional
features include two raised bars (great for visitors) and a
sunroom/breakfast. The two bedrooms are larger than you would expect for
a house this size, and one bath has a Jet Tub. A separate laundry,
pantry, linen and broom closet compliment the layout of this floor plan.
The front and rear covered porches provide spaces to relax with friends
and family. This plan also features Insulated Concrete Panels that
provide excellent insulation as well as structural stability.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

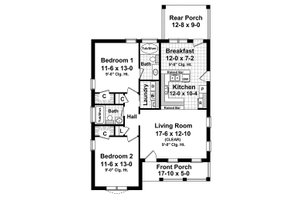

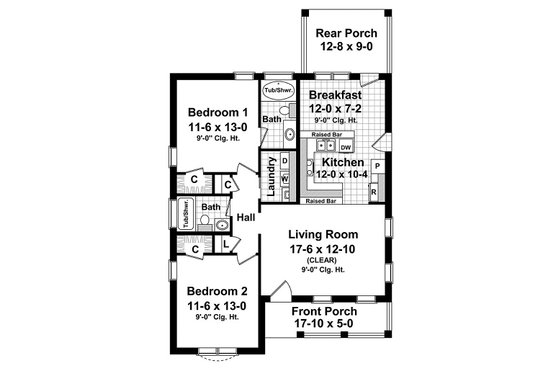

Floor Plan - Main Floor
Full Specs & Features
Depth : 48' 6"
Height : 21' 10"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : 11" ICF
Covered Front Porch
Covered Rear Porch
Energy Efficient Features
149 sq/ft width 11' 6" x depth 13'
149 sq/ft width 11' 6" x depth 13'
86 sq/ft width 12' x depth 7' 2"
123 sq/ft width 12' x depth 10' 4"
width 5' x depth 7' 4"
224 sq/ft width 17' 6" x depth 12' 10"
width 5' x depth 9' 8"
What's included in this plan set
See a sample plan set
*See important information before purchasing
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

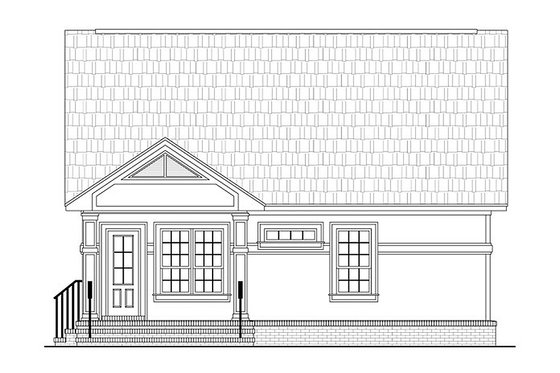

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
