Plan 23-641

Key Specs

1124
sq ft

3
Beds

1
Baths

1
Floors

0
Garages

Plan Description

Inside, we find a flowing semi-open activity area, with the living room highlighted by a partially vaulted ceiling to capture light from the arched feature window. The kitchen with island is within easy reach of a charming dining area which is surrounded by windows on three sides. The bedroom area is separate from the main living area and boasts three comfortable bedrooms including a forward-oriented master bedroom with large closet. The bathroom features a corner shower and independent bath.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

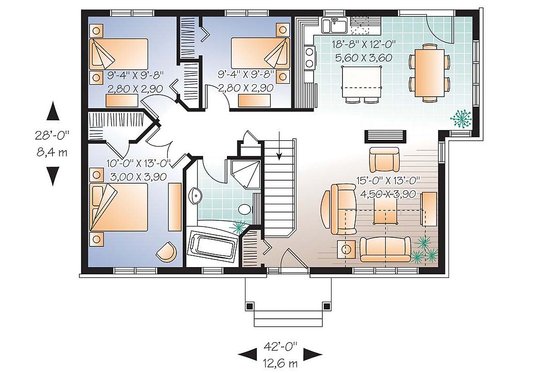

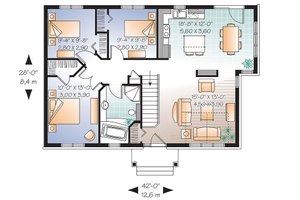

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 1

Stories: 1

Garages: 0

Dimension

Depth : 28'

Height : 21' 2"

Width : 42'

Area

Total : 1124 sq/ft

First Floor: 1124 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x6

Kitchen Features

Eating Bar

Kitchen Island

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

90 sq/ft width 9' 4" x depth 9' 8"

Bedroom 2 Closet:

9 sq/ft width 2' x depth 4' 10"

Bedroom 3:

90 sq/ft width 9' 4" x depth 9' 8"

Bedroom 3 Closet:

9 sq/ft width 2' x depth 4' 6"

Coat Closet:

8 sq/ft width 2' x depth 4'

Foyer:

14 sq/ft width 4' 8" x depth 3' 2"

Kitchen:

224 sq/ft width 18' 8" x depth 12'

Linen Closet:

2 sq/ft width 2' 2" x depth 1' 4"

Master Bathroom:

88 sq/ft width 7' 10" x depth 11' 4"

Master Bedroom:

130 sq/ft width 10' x depth 13'

Master Closet:

17 sq/ft width 5' 9" x depth 3'

Porch - Front:

31 sq/ft width 9' x depth 3' 6"

What's included in this plan set

See a sample plan set
