Plan 17-3297

Key Specs

1166
sq ft

3
Beds

2
Baths

1
Floors

1
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

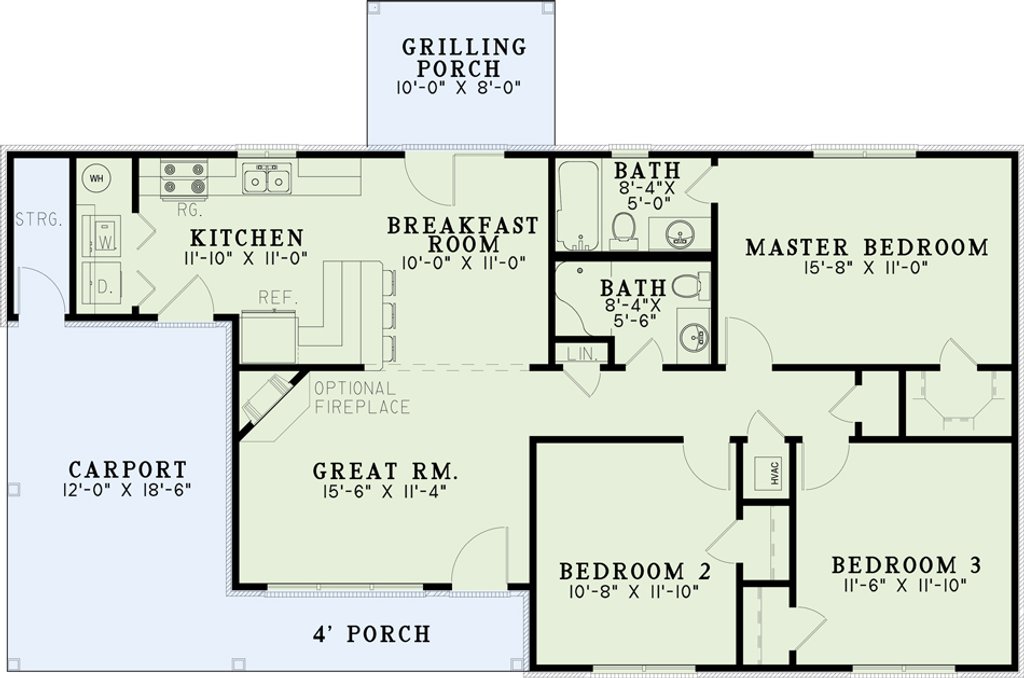

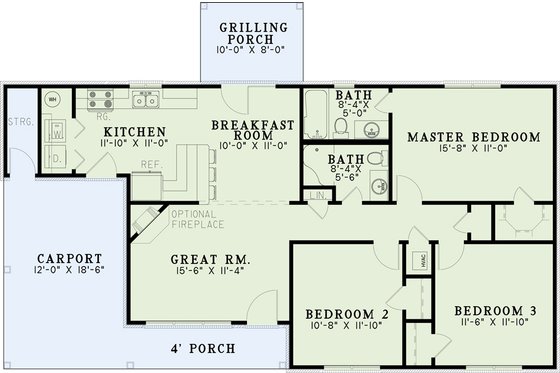

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 1

Dimension

Depth : 35' 8"

Height : 17'

Width : 53' 10"

Area

Total : 1166 sq/ft

First Floor: 1166 sq/ft height 8'

Garage: 322 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

45 sq/ft width 8' 4" x depth 5' 6"

Bedroom 2:

126 sq/ft width 10' 8" x depth 11' 10"

Bedroom 3:

136 sq/ft width 11' 6" x depth 11' 10"

Breakfast Room:

110 sq/ft width 10' x depth 11'

Carport:

222 sq/ft width 12' x depth 18' 6"

Great Room:

175 sq/ft width 15' 6" x depth 11' 4"

Grilling Porch:

80 sq/ft width 10' x depth 8'

Kitchen:

130 sq/ft width 11' 10" x depth 11'

Master Bathroom:

41 sq/ft width 8' 4" x depth 5'

Master Bedroom:

172 sq/ft width 15' 8" x depth 11'

What's included in this plan set

See a sample plan set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
CAD Unlimited Build comes with a free PDF.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

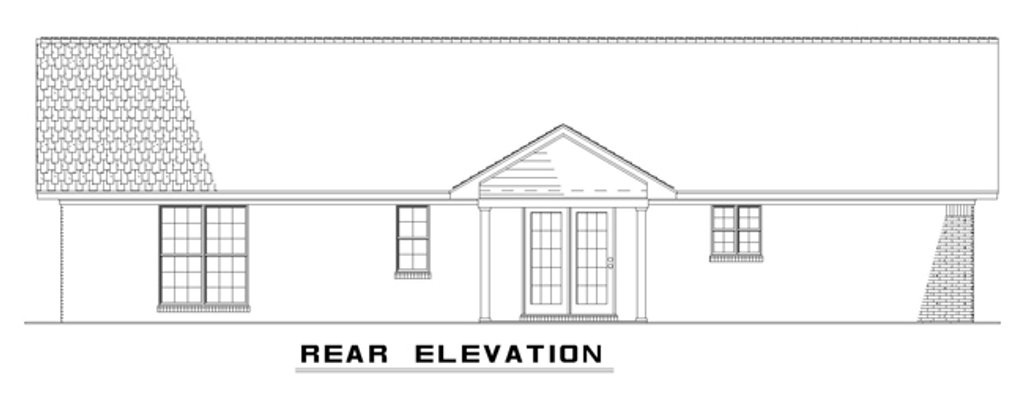

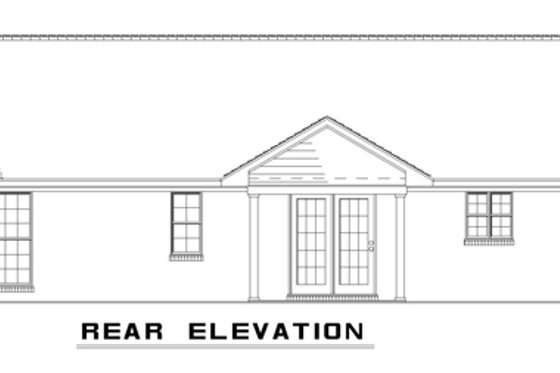

Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
