Plan 17-3406

Photographs may show modified designs.
Plan 17-3406

Key Specs


1621
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

Plan Description


With its rugged curb appeal and relaxed open layout, this home fits beautifully in a scenic setting. Relax on the wraparound porch with a cold drink, then head back to the grilling porch to prepare dinner. Inside, everyone can hang out at the kitchen's snack bar. The open dining room presents more space for meals, not far from the bright sunroom. A fireplace creates cozy ambiance in the great room. Easy to reach on this level, the master suite includes a double-sink vanity plus another sink in the water closet, which pulls double duty as a powder bath. Two large bedrooms share the second level, complete with a hall bath and linen storage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

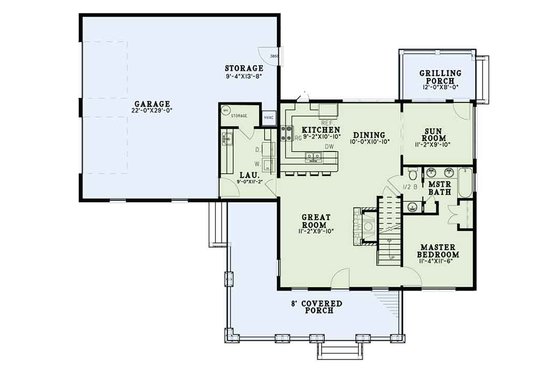

Floor Plan - Main Floor Plan

Reverse

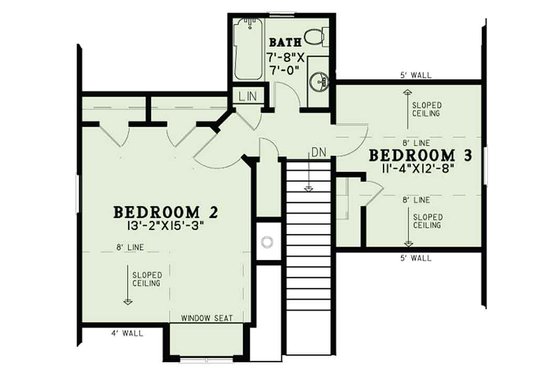

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 2

Dimension

Depth : 52' 4"
Width : 63' 2"

Area

Total : 1621 sq/ft
First Floor: 1099 sq/ft height 9'
Second Floor: 522 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2 x 4
Insulation : R19

Bedroom Features

Fireplace
Main Floor Master Bedroom
Split Bedrooms

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room
Main Floor Laundry
Open Floor Plan
Storage Area
Sunroom
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch
Wrap Around Porch

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

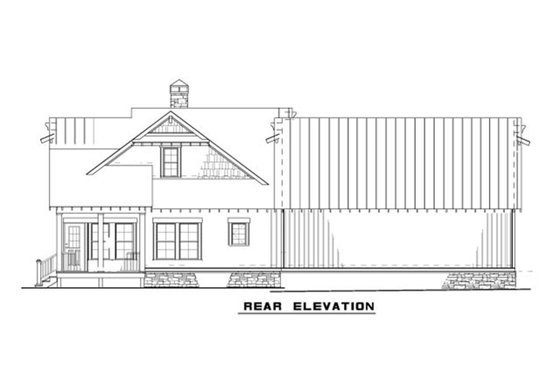

  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing
