Plan Description


his Craftsman garage plan can house two cars. This garage also has a bonus room with a beverage bar and sink. There is also a bathroom with shower. The doors on this garage are the same size at 10' wide and 8' tall.bonus room with a beverage bar and sink. There is also a bathroom with shower. The doors on this garage are the same size at 10' wide and 8' tall.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

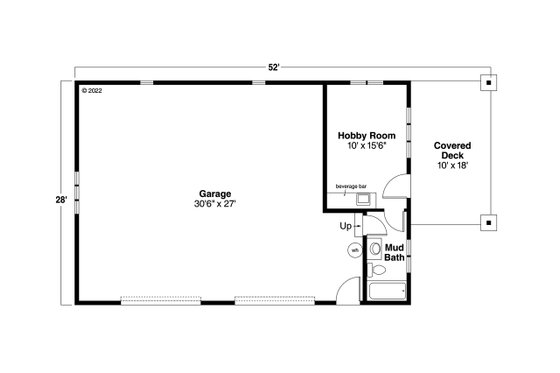

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 1
Stories: 1
Garages: 2

Dimension

Depth : 28'
Height : 19'
Width : 52'

Area

Total : 1176 sq/ft
First Floor: 250 sq/ft height 9'
Garage: 926 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding/Shingle
Framing : 2"x6"

Additional Room Features

Hobby Rec Room Game Room

Outdoor Spaces

Covered Front Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural Roof Framing

Rooms

Deck:

180 sq/ft width 10' x depth 18'

Garage:

823 sq/ft width 30' 6" x depth 27'

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

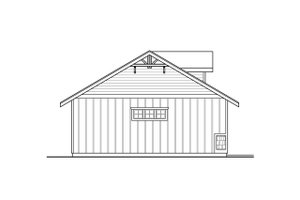

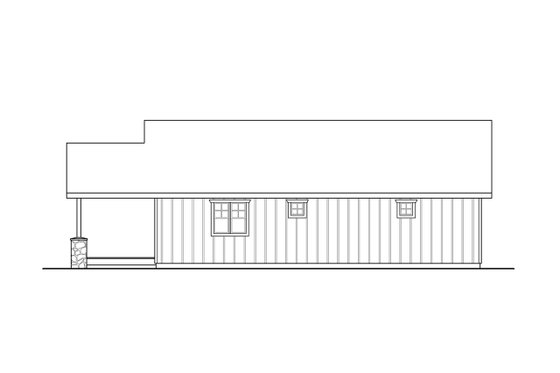

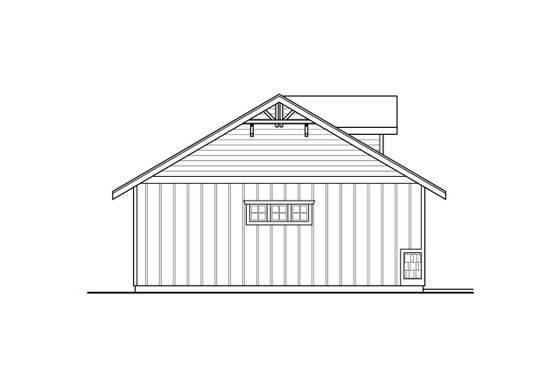

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
