Posts, gable-end detailing, wooden handrails draw eyes to this craftsman home plan. Vaulted porch flows into deck that wraps around the spacious vaulted gathering space. Plush owners' suite is vaulted too; loft, bathroom and two more bedrooms above.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

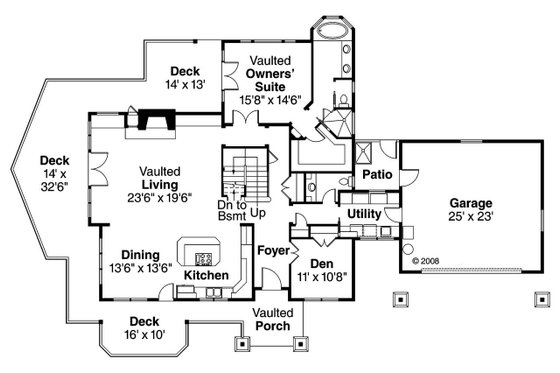

Floor Plan - Main Floor

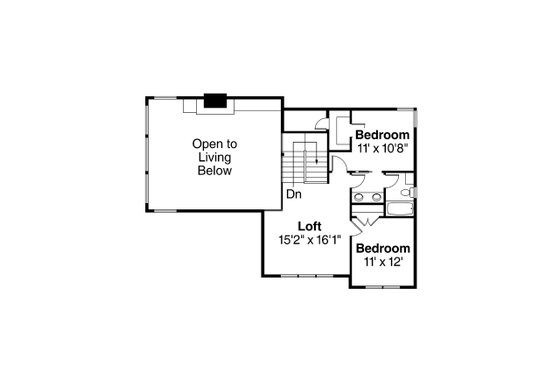

Floor Plan - Upper Floor
Full Specs & Features
Depth : 59' 4"
Height : 30' 2"
First Floor: 2013 sq/ft height 9'
Garage: 619 sq/ft height 9'
Second Floor: 713 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stone, Shingle, Siding
Framing : 2"x6"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Suited For Vacation Home
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
132 sq/ft width 11' x depth 12'
117 sq/ft width 11' x depth 10' 8"
455 sq/ft width 14' x depth 32' 6"
117 sq/ft width 11' x depth 10' 8"
182 sq/ft width 13' 6" x depth 13' 6"
575 sq/ft width 25' x depth 23'
458 sq/ft width 23' 6" x depth 19' 6"
width 16' 8" x depth 16' 1"
227 sq/ft width 15' 8" x depth 14' 6"
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

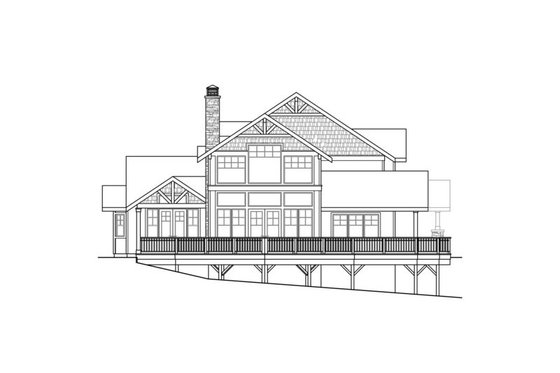

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
