Plan 23-824

Photographs may show modified designs.
Plan 23-824

Key Specs


1226
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Plan Description


This 1,226 sq. ft. cottage plan includes a ground floor bedroom with room for the washer and dryer in an alcove of the bathroom. The living room rises the full height of the house. The second floor includes a bedroom and bath and a loft bedroom overlooking the living room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

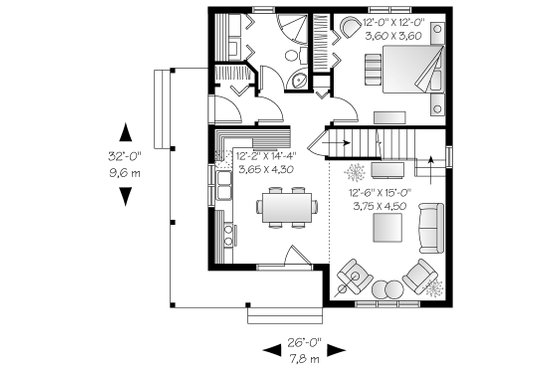

Floor Plan - Main Floor Plan

Reverse

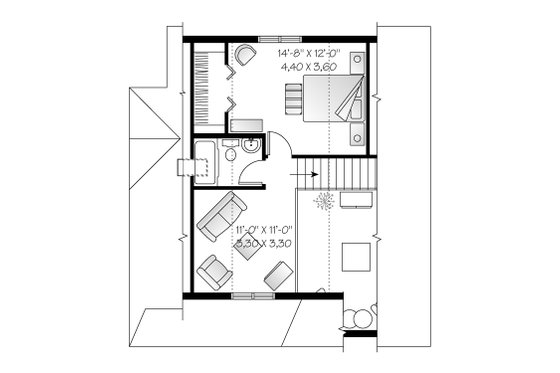

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 0

Dimension

Depth : 32'
Height : 25' 10"
Width : 26'

Area

Total : 1226 sq/ft
First Floor: 443 sq/ft
Second Floor: 783 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Walk In Closet

Additional Room Features

Loft
Storage Area
Unfinished Future Space

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Balcony
Covered Front Porch
Wrap Around Porch

Rooms

Bedroom 1:

144 sq/ft width 12' x depth 12'

Bedroom 2:

176 sq/ft width 14' 8" x depth 12'

Den - Upper:

121 sq/ft width 11' x depth 11'

Family Room:

187 sq/ft width 12' 6" x depth 15'

Kitchen:

174 sq/ft width 12' 2" x depth 14' 4"

What's included in this plan set


See a sample plan set

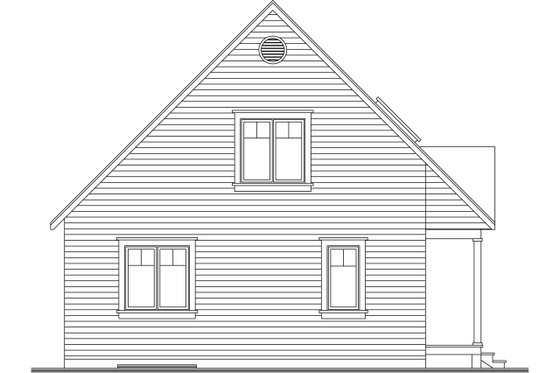

Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
