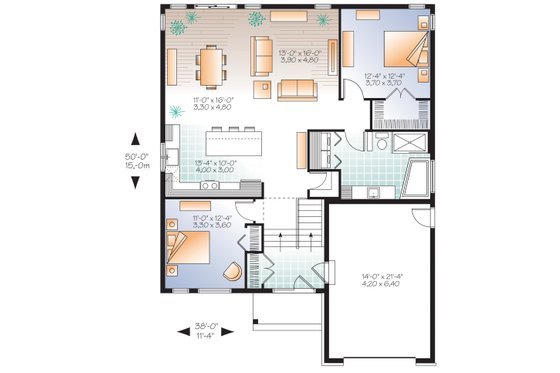

From the first step into this lovely transitional house plan, you enter a hall whose ceiling is more than 15 'in height, giving an amplitude to this area. This entry hall has a coat closet and a direct access to the one-car garage. Additionally, the skylight wisely positioned in this area, provides lots of natural light, reflected also in the open floor plan family area. The good size kitchen is also taking advantage of the natural light and the view of the backyard as this house boosts an open floor plan to the kitchen, dining and living room. A washer / dryer closet is situated away from the kitchen, but not far from the latter. Two good size bedrooms allow good size beds (queen or king), and one of them could even be converted into a guest room, gym or home office, as needed. The bathroom has a separate bathtub and shower (shower 64po 44po x) and private toilet room. The garage is 14ft x 20ft with high ceiling (over 10ft.).
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Main Floor
Full Specs & Features
Depth : 50'
Height : 22' 2"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
What's included in this plan set
See a sample plan set
*See important information before purchasing
Exterior Elevations (front, rear, left & right sides) typically include:
Foundation plans typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
Floor plan(s) typically include:
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
Roof plans typically include:
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
Building cross-section(s) and truss details typically include:
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
Construction details typically include:
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
Typical wall sections typically include;
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
