The two covered porches will assist you in being ,"The host with the
most", and the split bedroom layout will give you so much privacy you
will believe yours is the only room in the house. To say Great Room is
an understatement, this room is truly grand. The "center" of the house
is wide open, and flows effortlessly into the Kitchen/Dining Area. There
are lots of cabinets and a raised angled snack bar. Did I forget to
mention the fabulous bayed windows in the Dining Area? The Master suite
is a cut above the rest. The large walk- in closet is tucked away neatly
in the back of the room. The Master Bath is fully equipped with dual
sinks, a linen closet, tub/shower combo, and a separate toilet
compartment for privacy. Bedrooms 2 and 3 share a full bath with access
from the hall or either bedroom. Each room is outfitted with the plenty
of closet space. The big Laundry Room is conveniently nestled between
the Master suite and 2 car Garage
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

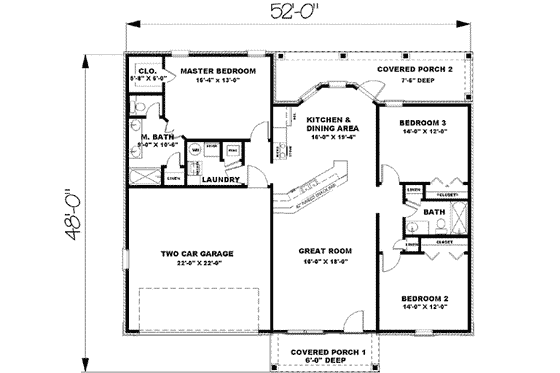

Floor Plan - Main Floor

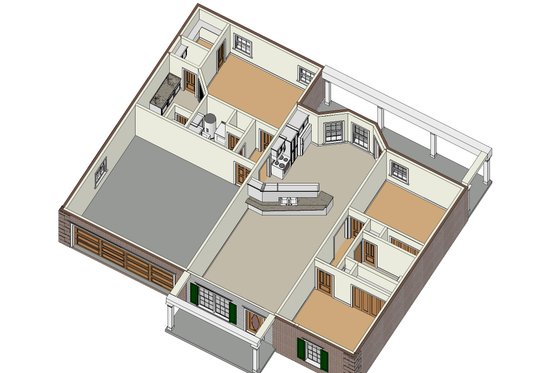

Floor Plan - Other Floor
Full Specs & Features
First Floor: 1499 sq/ft height 9'
Garage: 484 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
168 sq/ft width 14' x depth 12'
168 sq/ft width 14' x depth 12'
484 sq/ft width 22' x depth 22'
288 sq/ft width 16' x depth 18'
309 sq/ft width 16' x depth 19' 4"
94 sq/ft width 9' x depth 10' 6"
212 sq/ft width 16' 4" x depth 13'
34 sq/ft width 5' 8" x depth 6'
Porch - Front:
width 0" x depth 6'
Porch - Rear:
width 0" x depth 7' 6"
