Plan 118-127

Photographs may show modified designs.
Plan 118-127

Plan Description

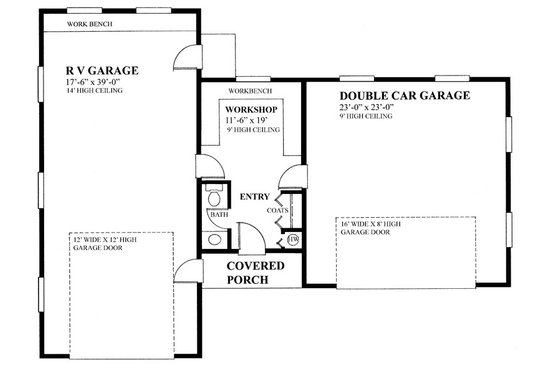

The RV garage portion of this combination garage has a fourteen foot high ceiling accessed though a twelve foot high by twelve foot wide overhead door. The double car garage has a nine foot high ceiling with an eight foot high by sixteen foot wide overhead door. The covered entry opens into the workshop and boasts a half bath and coats closet. Slide the entry door over to allow space for a shower in the bathroom if desirable. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required. Plans are designed with a concrete slab foundation plan.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 0
Baths : 0.5
Stories: 1
Garages: 2

Dimension

Depth : 40'
Height : 21'
Width : 54'

Area

Total : 1546 sq/ft
First Floor: 230 sq/ft
Garage: 740 sq/ft height 21'
Garage: 576 sq/ft height 21'
Porch: 46 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'
Main Ceiling : 0"

Roof

Primary Pitch : 8:12
Roof Framing : Trusses
Roof Load : total roof design load 47 psf
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Horizontal Siding
Framing : 2x6
Insulation : R34 roof R20 walls

Additional Room Features

Workshop

Garage Features

Detached Garage
Front Entry Garage
Oversized Garage
RV Garage
Split Garage
Tandem Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Unusual Shape

Rooms

Garage:

740 sq/ft width 23' x depth 23'

Garage 2:

576 sq/ft width 17' 6" x depth 39'

Workshop:

width 11' 6" x depth 19'

What's included in this plan set


See a sample plan set
  • Cover sheet with rendering and art floor plans
  • General notes and specifications
  • Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
  • Foundation plan at 1/4″=1′-0″
  • Main floor plan at 1/4″=1′-0″
  • Second floor plan at 1/4″=1′-0″, if applicable
  • Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
  • Electrical floor plans
  • Minimum of two cross sections at 1/4″=1′-0″
  • Details as required
  • All four elevations at 1/4″=1′-0″
  • Generic detail sheet
  • Plans are engineered by a structural engineer, but not stamped or sealed
  • Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
  • Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
  • Assumed soil bearing capacity 1560 psf
  • Electrical fixtures / switches / smoke alarms by location only on floor plans
  • Plumbing fixtures by location only on floor plans
  • Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$300.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$396.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$116.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$48.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$56.00
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$96.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
