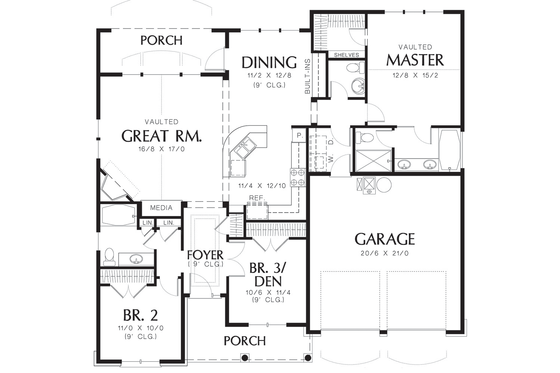

Charm personified comes home to stay in this one-story Craftsman cottage floor plan . Facade details include cedar shingle and stone accents, a columned front porch and double garage doors with decorative hardware. A shuttered window brightens the entry foyer, while a dormer window lights the garage. Interior living spaces cluster around a vaulted great room, warmed by a corner hearth, and made convenient by a built-in media center. Arch top windows overlook a rear covered porch, accessed via a French door in the dining area. Note the furniture recess in the dining room, which may also be developed with built-ins. The kitchen contains an angled work island with a snack bar on one side and a double sink on the other. A walk-in pantry and built-in bookshelves further enhance the kitchen. Choose three bedrooms or two and a den: Bedroom 3 opens through French doors just off the entry foyer and, therefore, converts easily. The hall bath serves both Bedroom 2 and Bedroom 3, and features double linen closets. The master suite sites behind the two-car garage. With a walk-in closet and bath with separate shower and spa tub, it is designed to pamper. The service hall contains a half-bath for quick cleanups and a laundry alcove with an entry to the garage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
First Floor: 1580 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 25 lbs. psf
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
105 sq/ft width 17' 6" x depth 6'
110 sq/ft width 11' x depth 10'
118 sq/ft width 10' 6" x depth 11' 4"
141 sq/ft width 11' 2" x depth 12' 8"
83 sq/ft width 16' 6" x depth 5'
430 sq/ft width 20' 6" x depth 21'
283 sq/ft width 16' 8" x depth 17'
145 sq/ft width 11' 4" x depth 12' 10"
192 sq/ft width 12' 8" x depth 15' 2"
42 sq/ft width 7' x depth 6'
25 sq/ft width 5' x depth 5'
What's included in this plan set
See a sample plan set
*See important information before purchasing
- Exterior Elevations
- In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
*Options with a fee may take time to prepare. Please call to confirm.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
