• Traditional in style, this cute ranch home is affordable to build but still has plenty of charm. • An open concept design combines the kitchen, dining room and great room into one usable space large enough for entertaining. • A walk-in pantry is sure to please the chef of the house. • Step ceilings in the dining area and great room define the space. • The split bedrooms have the master on the right side of the home along with a walk-in closet, and dual sinks. • Two additional bedrooms lie behind the garage to the left and share a full bath off the hall.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

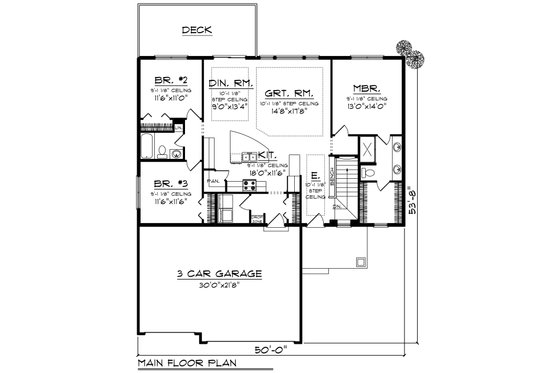

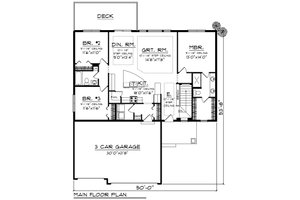

Floor Plan - Main Floor
Full Specs & Features
Depth : 53' 8"
Height : 23'
Garage : 655 sq/ft
Main Floor : 1583 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Entry, Dining, Great 10' Step.
Lower Ceiling : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Horizontal Siding.
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Grill Deck Sundeck
