Plan 70-1485

Photographs may show modified designs.
Plan 70-1485

Key Specs


2005
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Plan Description


Explore tons of photos showing the inside of this thoughtfully designed ranch home. The three-car garage features extra storage (perfect for stashing holiday decorations or sports equipment), while the master suite shows off a huge walk-in closet that opens directly to the laundry room. Additional Use License: $280.00
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

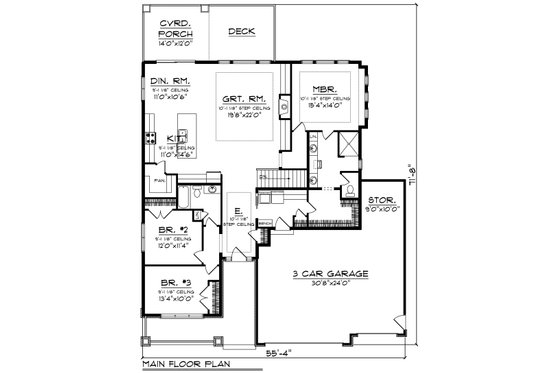

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 3

Dimension

Depth : 71' 8"
Height : 25'
Width : 55' 4"

Area

Total : 2005 sq/ft
Garage : 825 sq/ft
Main Floor : 2005 sq/ft
Porch : 400 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 9' to 10' step ceiling in Entry, Great Room & Master Bedroom
Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf; Snow 30 psf; Dead 17 psf
Roof Type : Shingle
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding/Shingle
Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

More

Empty Nester

Rooms

Bedroom 2:

width 12' x depth 11' 4"

Bedroom 3:

width 13' 4" x depth 10'

Covered Front Porch:

width 24' x depth 18'

Covered Rear Porch:

width 14' x depth 12'

Deck:

width 14' x depth 12'

Dining Room:

width 11' x depth 10' 6"

Foyer:

width 7' x depth 14' 8"

Garage:

width 30' 8" x depth 24'

Great Room:

width 19' 8" x depth 22'

Hall Bath :

width 9' x depth 8' 4"

Kitchen:

width 11' x depth 14' 6"

Laundry:

width 10' 4" x depth 8'

Master Bedroom:

width 10' 4" x depth 11' 8"

Master Closet:

width 10' 6" x depth 8' 6"

Pantry:

width 6' 8" x depth 7'

Storage:

width 9' x depth 10'

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$960.00
5 printed plan sets mailed to you.

8 Copy Set

$1005.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1210.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1210.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1915.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$295.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
