At a shade under 1,600 square feet, this cottage packs a three bedroom
wallop. The front view is a side-to-side porch topped by pediment-like
roof facade. Notice the standing seam metal roof. Entry is through a
large great room that opens to the kitchen or a hallway to the bedroom
portion of the plan. The Kitchen is conveniently split around a center
island for maximum use of space. Daily traffic easily moves through to
the large dining area. The Laundry is tucked in the corner. Three
generously sized bedrooms are lined up to the left side of this design.
The Master Bedroom is situated at the rear and features a large walk-in
closet and two basin bath areas. The middle bedroom has a walk-in closet
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

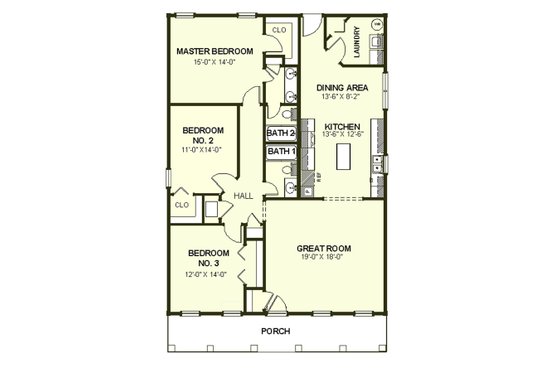

Floor Plan - Main Floor
Full Specs & Features
Depth : 52' 8"
Height : 21'
First Floor: 1587 sq/ft height 9'
