A nostalgic railed porch wraps across the front and around to the right of this spacious country home plan. Natural light spills into a vaulted entry through a skylight, and more washes into the vaulted great room through wide windows at the rear. Kitchen and nook are also vaulted and naturally bright.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

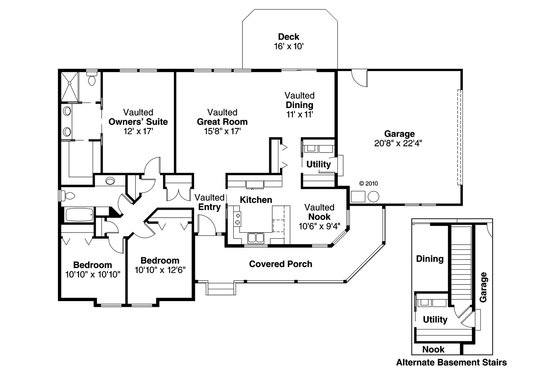

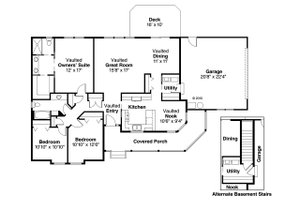

Floor Plan - Main Floor
Full Specs & Features
Depth : 40'
Height : 20' 6"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Structural Information Provided
Structural 1st Floor Framing
135 sq/ft width 10' 10" x depth 12' 6"
108 sq/ft width 10' 10" x depth 10'
121 sq/ft width 11' x depth 11'
461 sq/ft width 20' 8" x depth 22' 4"
255 sq/ft width 15' x depth 17'
204 sq/ft width 12' x depth 17'
97 sq/ft width 10' 6" x depth 9' 4"
