Plan #542-2

Key Specs


  • 1636 sq ft

  • 2 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 1 Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

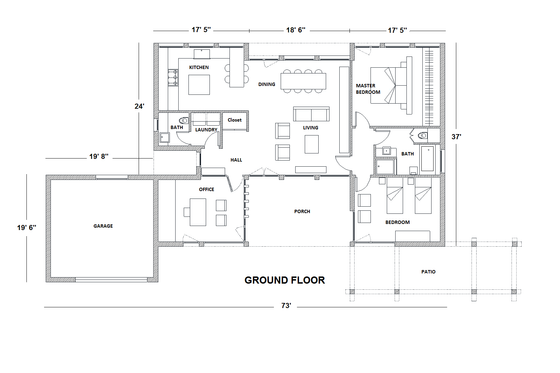

Floor Plan - Main Floor Plan
Ranch Style House Plan - 2 Beds 2 Baths 1636 Sq/Ft Plan #542-2 Floor Plan - Main Floor Plan - Houseplans.com

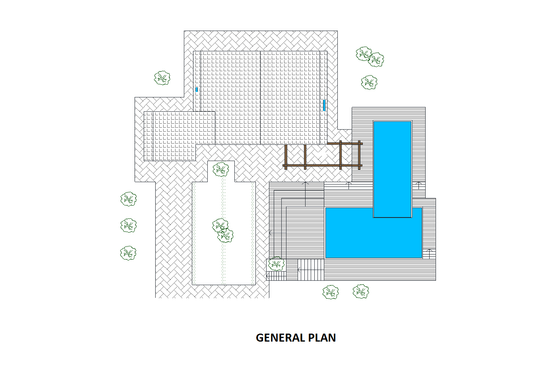

Floor Plan - Other Floor Plan
Ranch Style House Plan - 2 Beds 2 Baths 1636 Sq/Ft Plan #542-2 Floor Plan - Other Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Stories : 1
Baths : 2
Bedrooms : 2
Garage Stalls : 1

Dimension

Height : 19'
Width : 73'
Depth : 44'

Area

Garage Sq Ft : 388 sq ft
Main Floor Sq Ft : 1636 sq ft
Patios Sq Ft : 274 sq ft
Porch Sq Ft : 238 sq ft
Total Sq Ft : 1636 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 18'
Garage Ceiling Ft : 10'

Roof

Roof Framing : Wooden structure

Exterior Wall Framing

Exterior Wall Finish : wood/tiles
Framing : Wooden structure
Insulation : Eco-friendly mineral wool/wood fibre panel

Bedroom Features

Main Floor Bedrooms

Kitchen Features

Breakfast Nook

Additional Room Features

Main Floor Laundry
Great Room Living Room
Den Office Study Computer

Garage Features

Side Entry Garage
Carport Porte Cochere

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Suited For Corner Lot

Outdoor Spaces

Courtyard

More

Economical To Build
Universal Wheelchair Access
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1530.00 5 printed plan sets mailed to you.
CAD Set $1530.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $1530.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $540.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $540.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Meet the Designer - Lucia Strona

Lucia Strona - Houseplans.com
“Architecture is an art that blends history, geography, science, anthropology, environment, and society. This art does not exist without people and their hopes, expectations and passions. It mirrors all these aspects. One must be able to listen, but immediately below the priority of listening is that of the architect, with her notion of consistency. Basically, good architecture does not exist without a good customer.”

Lucia was born in Milan and graduated in Architecture at the University of Rome 'La Sapienza' (Italy). She specialized in the restoration of historical and architectural heritage, bio-architecture, and landscaping. Following her university studies, she qualified in renewable energy systems, sustainable development, geobiology and Feng Shui planning. She works mainly in Italy, and she is an international member of 'AIA' (The American Institute of Architects). Combining professional activities with artistic painting and studies regarding architecture in extreme environments, Lucia was the author of the first European project entailing "A HUMAN OUT-POST IN A LUNAR LAVA TUNNEL". She cooperates with some specialized editorial magazines, was organizer of and speaker at numerous conferences in the above fields. In Italy, she has received a prize for: "Women with an outstanding entrepreneurial approach to work."

Her professional studio deals mainly with "green" architecture, Feng Shui planning, renewable energy, architectural restoration and landscaping. She also has vast experience in designing modern-houses built according to the 'Natural-House Building Concept'. This approach focuses on Heat Protection; Electrosmog Protection; Wind Draught Protection; Cold and Humidity Protection; and Acoustic Protection. These houses are 'energy efficient' and 'energy-saving' using certified high-quality eco-friendly materials and renewable energy systems. The main structures can be built with structural wood or bio-concrete/masonry. These concepts may be adapted to an infinite variety of home styles.

What's included?
Instant Download After Checkout

Subtotal Now $1530.00

You save $170.00 (10% savings)

Sale ends on 09/30/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350
