Plan 1010-148

Photographs may show modified designs.
Plan 1010-148

Key Specs


1691
sq ft

4
Beds

3
Baths

2
Floors

0
Garages

Plan Description


This gorgeous A-frame home features an open layout and four bedrooms, giving you lots of room for family and friends. On the main level, the kitchen's roomy island creates a relaxed vibe with snack-bar seating. Nearby, the open dining room flows with ease into the great room. The master suite invites you to relax in the whirlpool tub. Another bedroom and bath are easy to reach on this level, while upstairs, kids will enjoy having their own zone with two bedrooms, another bath, and an open sitting room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Reverse

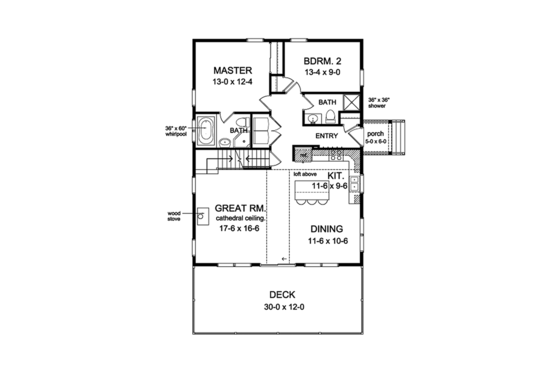

Cabin Floor Plan - Main Floor Plan Plan #1010-148

Floor Plan - Upper Floor Plan

Reverse

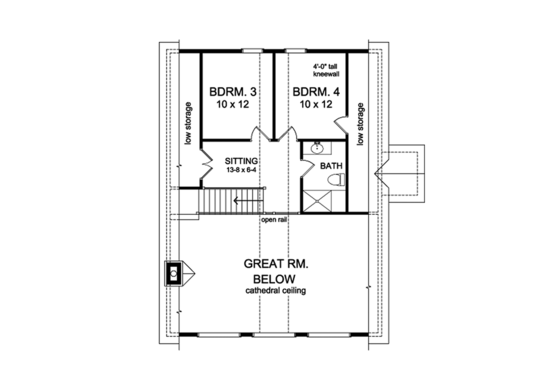

Cabin Floor Plan - Upper Floor Plan Plan #1010-148

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 0

Dimension

Depth : 40'
Height : 28'
Width : 35'

Area

Total : 1691 sq/ft
Basement Unfinished: 1200 sq/ft
First Floor: 1200 sq/ft height 9'
Second Floor: 491 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Main Floor Master Bedroom

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony
Courtyard
Deck

Rooms

Bedroom 2:

120 sq/ft width 13' 4" x depth 9'

Bedroom 3:

120 sq/ft width 10' x depth 12'

Bedroom 4:

120 sq/ft width 10' x depth 12'

Covered Side Porch:

30 sq/ft

Dining Area:

121 sq/ft width 11' 6" x depth 10' 6"

Great Room:

289 sq/ft width 17' 6" x depth 16' 6"

Kitchen:

109 sq/ft width 11' 6" x depth 9' 6"

Master Bedroom:

160 sq/ft width 13' x depth 12' 4"

Sitting Loft:

87 sq/ft width 13' 8" x depth 6' 4"

What's included in this plan set


See a sample plan set
All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
  • CAD Plans are in AutoDesk Architecture.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1250.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$1250.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
