Plan 47-871

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

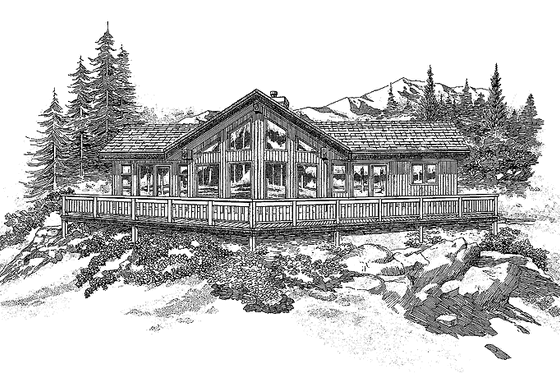

This grand vacation or retirement home is designed to provide expansive views and comfortable outdoor living. The full-width deck complements the abundant windows at the bottom of the plan. Made for large gatherings, the living room provides a vaulted ceiling, fireplace, and full-height windows overlooking the deck. The open dining room has sliding glass doors to the deck and a pass-through counter to the U-shaped kitchen. Two family bedrooms sit in the middle of the plan and share a full bath. The master suite features a private bath and deck access.

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

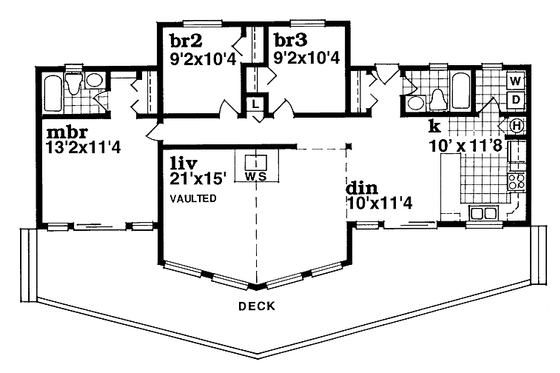

Floor Plan - Main Floor


BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

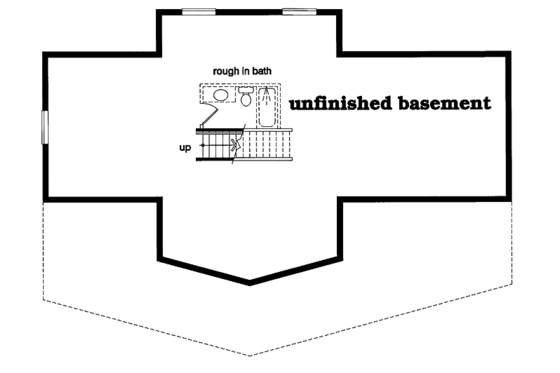

Floor Plan - Lower Floor


Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 0


Depth : 33'
Height : 17'
Width : 55' 6"


Total : 1230 sq/ft
Basement Unfinished: 1230 sq/ft
First Floor: 1230 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor

Kitchen Features

Breakfast Nook
Kitchenette Wet Bar

Outdoor Spaces

Covered Front Porch


3rd BR Closet:

10 sq/ft width 3' 10" x depth 2' 8"

Bedroom 2:

94 sq/ft width 10' 4" x depth 9' 2"

Bedroom 2 Closet:

10 sq/ft width 3' 10" x depth 2' 8"

Bedroom 3:

93 sq/ft width 10' 4" x depth 9' 1"

Bedroom 3 Closet:

10 sq/ft width 3' 10" x depth 2' 8"

Crawlspace Foundation:

1665 sq/ft width 30' x depth 55' 6"

Dining Room:

113 sq/ft width 11' 4" x depth 10'


16 sq/ft width 5' 4" x depth 3' 2"

Hall Bathroom:

39 sq/ft width 5' 4" x depth 7' 4"

Hall Closet:

14 sq/ft width 5' 4" x depth 2' 8"


113 sq/ft width 11' 4" x depth 10'

Living Room:

315 sq/ft width 15' x depth 21'

Master Bathroom:

39 sq/ft width 5' 4" x depth 7' 6"

Master Bedroom:

149 sq/ft width 11' 4" x depth 13' 2"

Master Closet:

14 sq/ft width 5' 4" x depth 2' 8"

Porch - Front:

444 sq/ft width 8' x depth 55' 6"

Utility Room:

31 sq/ft width 5' 4" x depth 6'

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

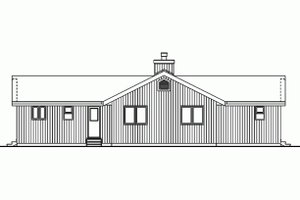

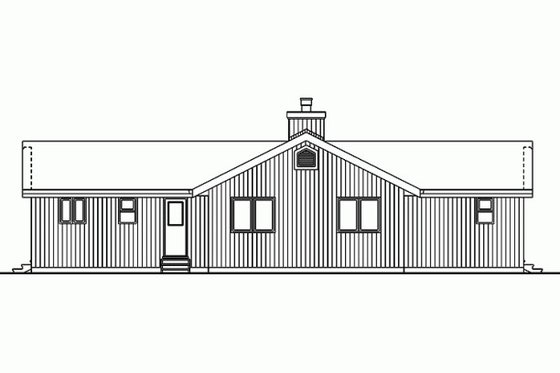

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.

8 Copy Set

8 printed plan sets mailed to you.

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options


Ideal for level lot, lower level of home partially or fully underground.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

Additional Use License.

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License

Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer

Select Home Designs

Select Home Designs -

Other Plans By This Designer

See all plans by Select Home Designs

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.

Call: 1-800-913-2350
