Plan Description

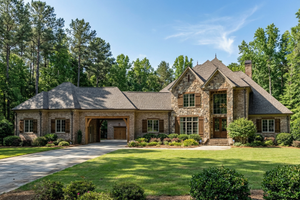

This brick and stone rustic home features an eye-catching timber beam gabled front porch and open floor plan. The Great Room has a 12′ ceiling and is open to the spacious kitchen and dining room and has access to a large Sun Room. The kitchen offers a prep island as well as plenty of counter space and an eat-at peninsula bar. The Master Suite has a gas fireplace and multiple windows for natural lighting while the bath boasts a corner whirlpool tub, a glass shower, dual vanities and a huge walk-in closet that doubles as a Safe Room. 2 more bedrooms share a bathroom on the right side of the house. Off of the Sun Room is an Outdoor Living/Grilling Porch with a fireplace for cool evenings.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 4


Depth : 84' 5"
Height : 38'
Width : 116' 10"


Total : 4949 sq/ft
First Floor: 3282 sq/ft
Second Floor: 1667 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details :
Main Ceiling : 10'
Upper Ceiling Ft : 9'


Primary Pitch : 12:12
Roof Framing : Conventional
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Mud Room

Garage Features

Carport Porte Cochere
Rear Garage
Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill


Bath 2:

width 5' x depth 8'

Bath 3:

width 5' 2" x depth 12'

Bath 4:

width 11' x depth 5'

Bedroom 2:

width 14' 4" x depth 12'

Bedroom 3:

width 16' x depth 12'

Bedroom 4:

width 14' 4" x depth 15' 8"


width 17' x depth 9' 6"

Exercise Room:

width 20' x depth 12'


width 11' x depth 17'

Game/Media Room:

width 18' 4" x depth 16' 8"

Great Room:

width 19' 4" x depth 18' 10"

Hearth Room/Dining:

width 17' 10" x depth 12'

Kid's TV Room:

width 18' 4" x depth 13'


width 17' 10" x depth 17'

Laundry Room:

width 13' 8" x depth 12' 9"

Lawn Storage:

width 8' x depth 11' 6"

Master Bath:

width 12' 8" x depth 15' 8"

Master Suite:

width 17' x depth 18'

Porte Cochere:

width 20' x depth 21' 4"

Rear Covered Outdoor Living:

693 sq/ft width 20' 9" x depth 19' 4"

Storage/Safe Room:

width 7' 4" x depth 11' 6"

Three Car Garage:

width 34' 8" x depth 24'

Workshop/Garage 2:

width 27' 4" x depth 23' 8"

What's included in this plan set

See a sample plan set

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.

5 Copy and PDF Set

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.


Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

Wood 2x4

Wood 2x6

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
