Plan 17-2496

Photographs may show modified designs.
Plan 17-2496

Key Specs


2340
sq ft

3
Beds

3.5
Baths

1
Floors

3
Garages

Plan Description


Stone, brick, and shake siding blend seamlessly on the exterior while timber beams grace the covered front porch in the gable and columns with stone bases. Inside you’ll find a beautiful Great Room with more timber beams in the vaulted ceiling and a fireplace for cold evenings. French Doors open to a large Outdoor Living/Grilling Porch complete with a fireplace as well. The Master Suite offers solitude and privacy with a relaxing corner whirlpool tub, a large glass shower with seats and a huge walk-in closet. On the other side of the Great Room are 2 more bedrooms, each with ample walk-in closets and a shared full bath. Over the garage, more options await with the 4th Bedroom/Bonus Room and full bath and walk-in closet.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

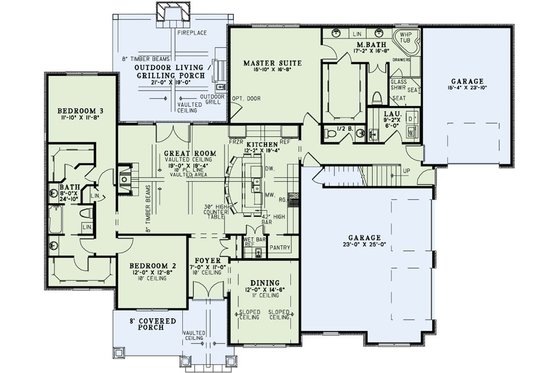

Floor Plan - Main Floor Plan

Reverse

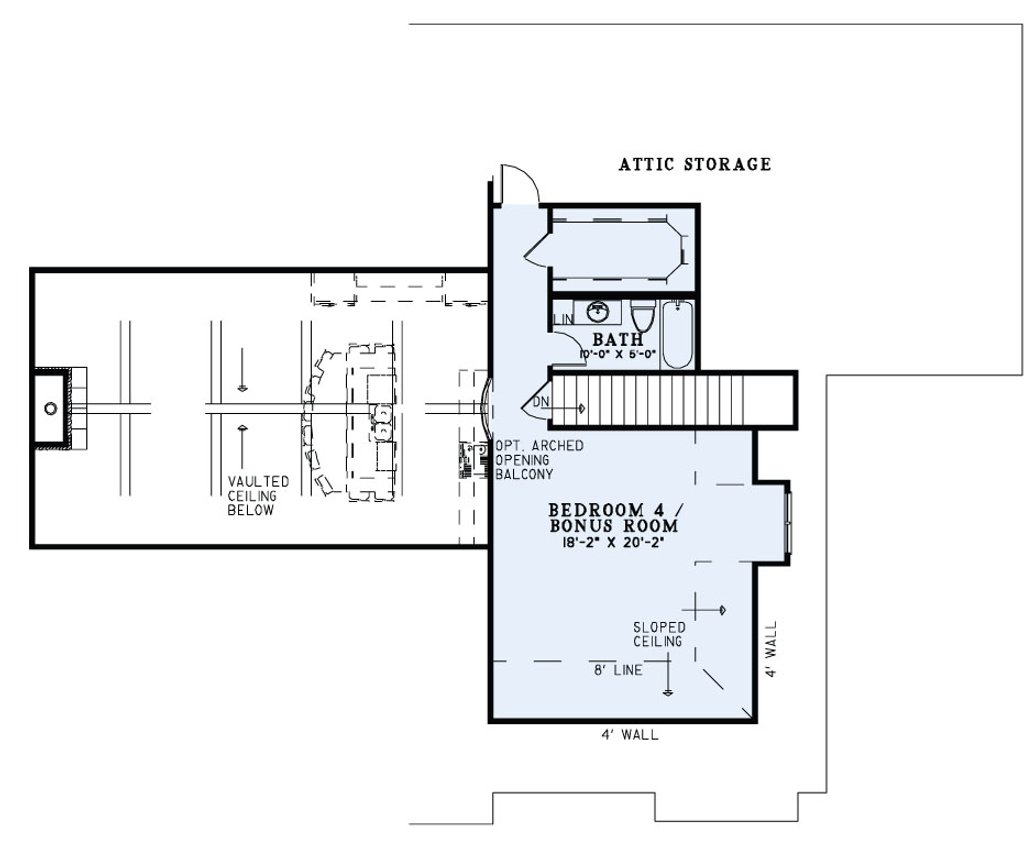

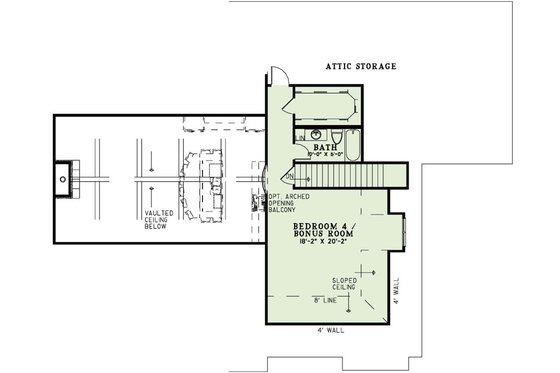

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 61' 3"
Height : 33'
Width : 81' 6"

Area

Total : 2340 sq/ft
Bonus: 602 sq/ft
First Floor: 2340 sq/ft height 9'
Garage: 1069 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details :
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Main Floor Laundry
Mud Room

Garage Features

Side Entry Garage
Split Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

Rooms

Bath 3:

width 10' x depth 5'

Bedroom 2:

width 12' x depth 12' 8"

Bedroom 2 closet:

width 12' 2" x depth 5' 4"

Bedroom 3:

width 11' 10" x depth 11' 8"

Bedroom 3 closet:

width 8' 4" x depth 6' 10"

Bonus:

602 sq/ft width 18' 2" x depth 20' 2"

Dining:

width 12' x depth 14' 6"

Foyer:

width 7' x depth 11'

Garage:

width 23' x depth 25'

Garage 2:

width 15' 4" x depth 23' 10"

Great Room:

width 19' x depth 19' 4"

Grilling Porch:

width 21' x depth 19'

Kitchen:

width 12' 2" x depth 19' 4"

Laundry:

width 9' 2" x depth 6'

Master Bath:

width 17' 2" x depth 16' 8"

Master Bedroom:

width 16' 10" x depth 19' 8"

Master closet:

70 sq/ft width 7' x depth 10'

Master shower:

width 5' 10" x depth 5' 2"

Pantry:

width 5' 9" x depth 4' 4"

Porch Front:

120 sq/ft

Porch Rear:

444 sq/ft

Wet bar:

width 4' 3" x depth 4' 4"

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$800.00
5 printed plan sets mailed to you.

CAD Set

$1455.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$250.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$250.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$250.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.

Call: 1-800-913-2350

or

Email: sales@houseplans.com
