This charming Craftsman garage plan can store 2 cars or 4 if stacked two deep. Both garage doors are the same size at 9' wide and 10' tall. Towards the back of the garage is a work bench with sink and storage tucked under the stairs that lead up to the loft. The loft could function as a recreation room, craft room or whatever else you need it to be. Along one of the walls is space for a future counter with sink and small refrigerator.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

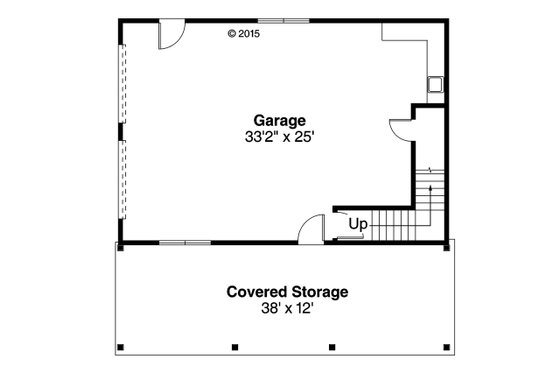

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 38'
Height : 26' 3"
Garage : 988 sq/ft
Upper Floor : 746 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12/12
Roof Framing : Truss/Stick
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle
Framing : 2x6
