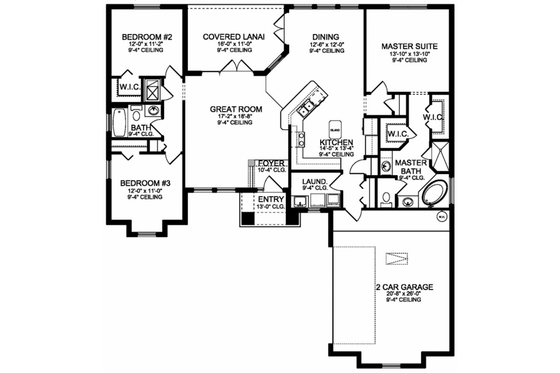

This 1,775-square-foot plan lives large for its size with multiple walk-in closets and a spacious open layout. A snack bar and separate central island provide room for cooking and entertaining in the kitchen, with the open dining room and great room nearby. French doors open these spaces to the covered lanai for indoor-outdoor living. On the right side of the home, a small foyer leads into the master suite, where owners will appreciate the private bathroom with dual sinks, a corner tub, and a large shower. Two more bedrooms (one with a walk-in closet) share a hall bath on the opposite side. Other modern touches include the laundry room's position to the side of the mud entrance and the stone details on the sleek exterior.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Main Floor Plan
Full Specs & Features
First Floor: 1775 sq/ft height 9' 4"
Garage: 520 sq/ft height 9' 4"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 5:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block
Main Floor Master Bedroom
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Front Porch:
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

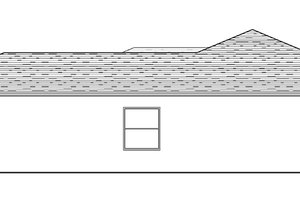

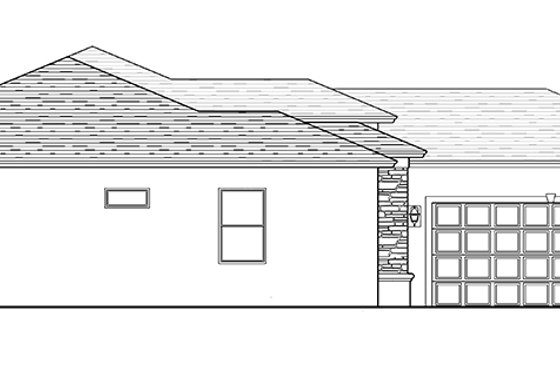

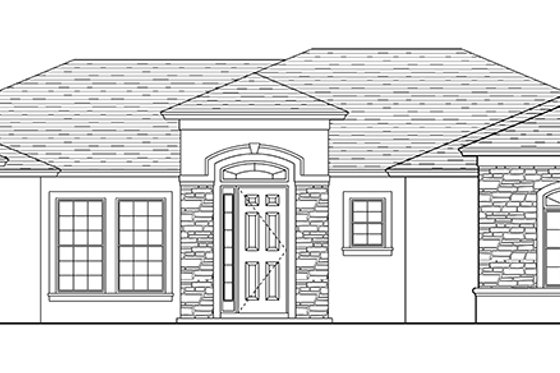

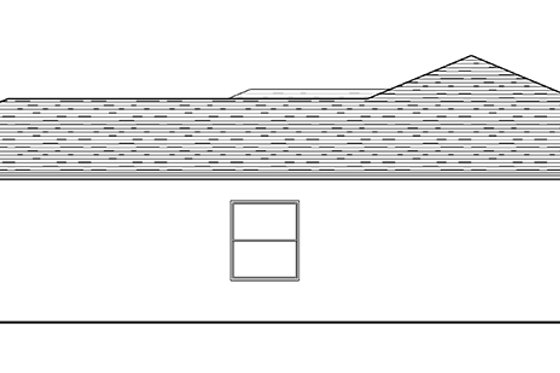

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
5 Copy Set
5 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
