Plan 51-1189
Photographs may show modified designs.
Home  >  Style  >  Traditional

Traditional Style Plan 51-1189

Key Specs


Plan Sq Ft

1776
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$170.00
Additional Construction Sets$63.75/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$85.00
$33.15
Subtotal
NOW $1742.50
You save $307.50
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1776
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description

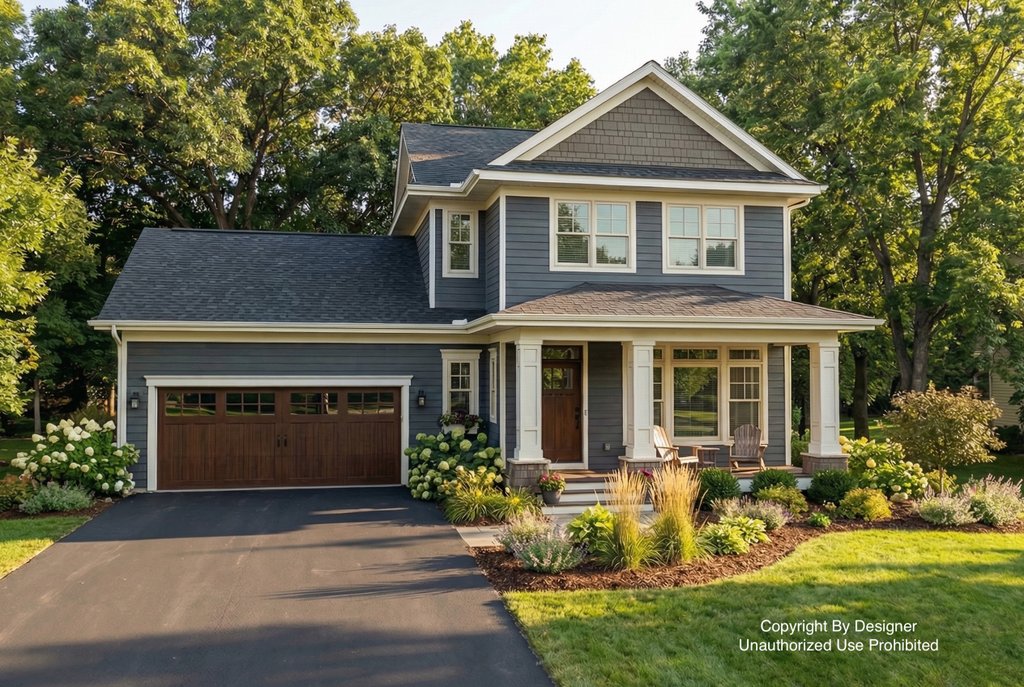

The delightful wood accents and welcoming covered front porch combine to create a very pleasant exterior for this 2-story 1776 sq ft Traditional style house. This comfortable home holds 3 bedrooms, 2 ½ bathrooms and a 2-car garage. When you enter the home, you’ll find yourself in an elegant foyer with a built-in bench that shares a half wall with the expansive great room. This room features multiple windows on two sides and tons of space for entertaining friends and family. The perfect flow of the layout leads you to the large kitchen and dining area. They say the kitchen is the heart of the home, and this one is no exception! This well-designed space features a generous island with seating for 2, making it a perfect spot for coffee and conversation. Multiple cabinets, a walk-in pantry with pocket door and a spacious closet will satisfy all your storage needs. The dining area is conveniently located just feet from the kitchen, making sit down dinners a real pleasure. Access to the rear porch allows for another dining venue, while abundant windows help bring the outdoors in! On the second level you’ll find the relaxing primary suite that contains a large primary bedroom with windows on two sides and a luxurious primary bathroom with two sinks. A pocket door divides the sinks from a large step in shower and toilet, allowing one person to use the shower while another uses the mirror on those busy work day mornings! A generous walk-in closet with built-ins complete the suite. Two additional bedrooms, each with a spacious closet are also located on the second level as well as a full bathroom. A dedicated laundry room is located outside the bedrooms, making laundry one of the easiest of your household chores! Other features of this amazing home include a mudroom with built-in lockers and garage access, plus a pocket office with built-in L-shaped desked tucked behind a sliding barn door. The combination of charm, functionality, amenities and a well thought out design make this a perfect home for any family!

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

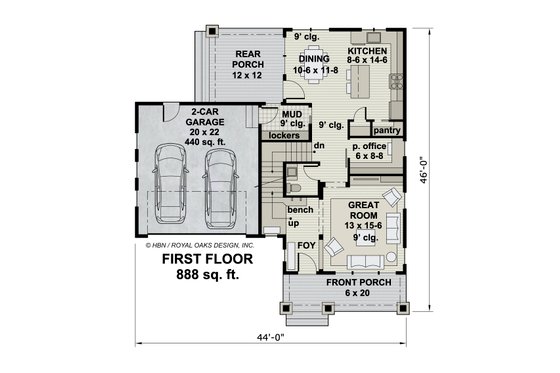

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

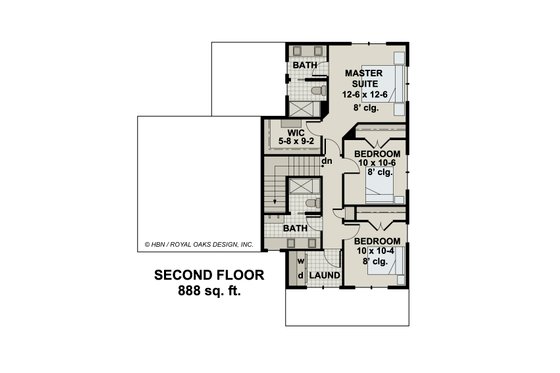

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 46'
Height : 28' 5"
Width : 44'

Area

Total : 1776 sq/ft
Garage : 440 sq/ft
Main Floor : 888 sq/ft
Porch : 252 sq/ft
Upper Floor : 888 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2x6

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Mud Room
Upstairs Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's included in this plan set


See a sample plan set
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

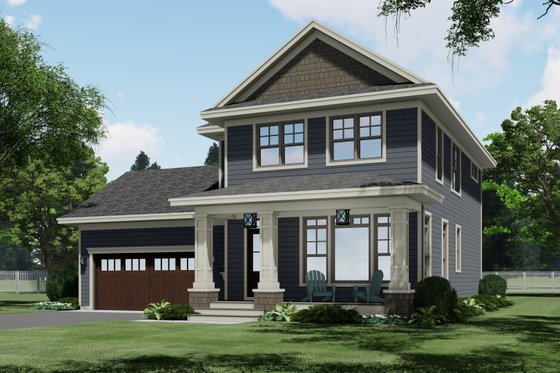

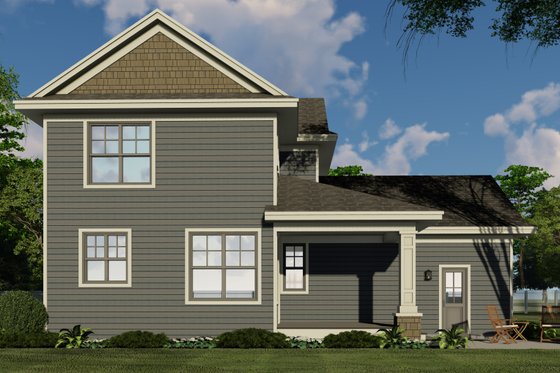

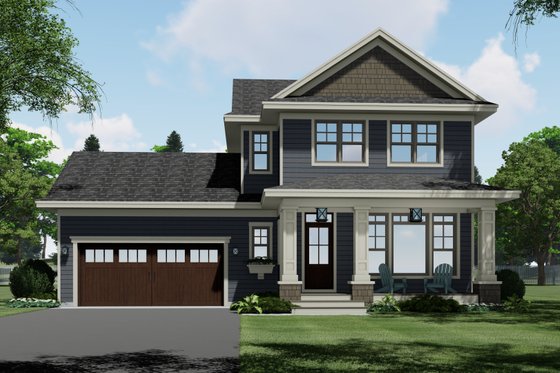

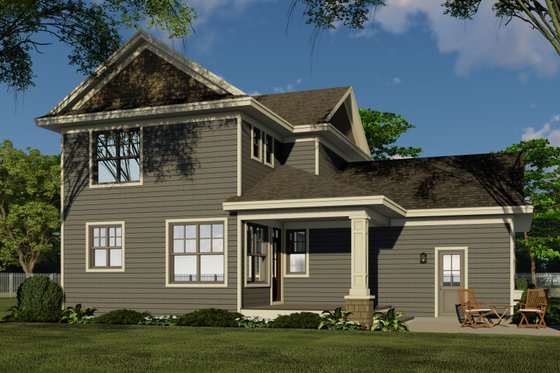

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1742.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1912.50
5 printed plan sets mailed to you.

5 Copy and PDF Set

$1997.50
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

8 Copy Set

$1997.50
8 printed plan sets mailed to you.

CAD and PDF Set

$2295.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$340.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$340.00
Ideal for sloping lot, lower level of home partially underground.

Slab

$340.00
Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement

$340.00
Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6 Exterior Walls

Wood 2x4

$212.50
Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$170.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$63.75
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
