Thanks to its narrow footprint, this contemporary design is suited perfectly for an urban lot or secondary or rental residence. Parking for one car is offered by a porte cochere along with a storage space. The entrance opens to a well lit stairwell and a conveniently located powder bath. To the left is the main living area which includes the kitchen, dining and living rooms. Triple glass doors and double full height windows bring natural light to this living space while providing views to the backyard. The rear porch features a metal trellis. A glass encased stair landing offers a resting place with views to the backyard. Two bedrooms and laundry occupy the second floor. The master bedroom faces the backyard and includes a full stand up shower, freestanding tub and walk in closet. An additional bedroom also includes an en-suite bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

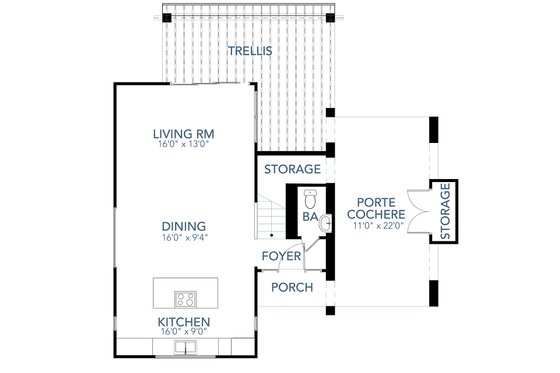

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Main Floor : 659 sq/ft
Porch : 259 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Primary Pitch : 4:12
Roof Type : Composition Shingles
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Upstairs Master Bedrooms
Additional Room Features
Great Room Living Room
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

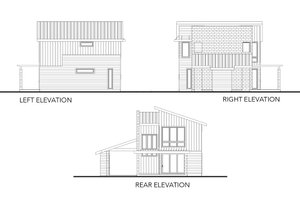

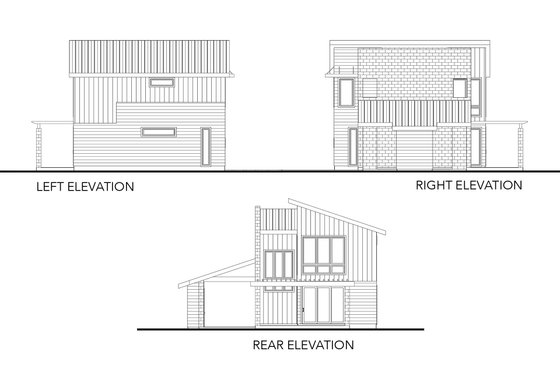

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
