This inviting craftsman home includes all the features that you and
your family have always dreamed of having. The well-appointed floorplan
design makes use of every available space while providing many extras
that you would expect to find in a much larger home. The entry foyer,
adjacent to the formal dining, opens into the great room that features
trayed ceilings as well as built in cabinets and a gas log fireplace. A
second eating area is provided within close proximity to the
well-equipped kitchen and features beautiful views. The kitchen also
includes an eating bar and island that provides plenty of cabinet and
counter space. The master suite also features trayed ceilings as well as
a large walk-in closet, tub and separate shower, dual lavatories, and
enclosed toilet area. The other two bedrooms are well-sized, have
walk-in closets, and share a compartmented bath. The oversized garage is
large enough for today's vehicles and also includes a separate storage
area. This design truly features everything that makes a house a home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

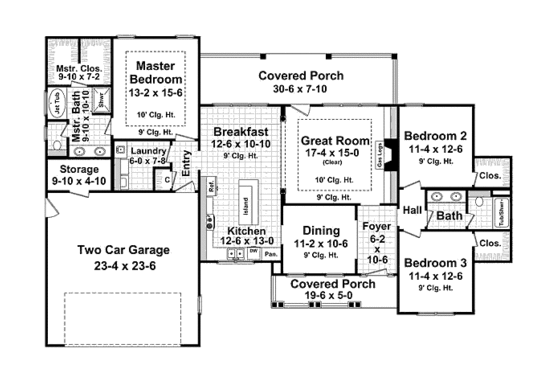

Floor Plan - Main Floor
Full Specs & Features
Depth : 48'
Height : 22' 1"
First Floor: 1800 sq/ft height 9'
Garage: 621 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Hip / Gable
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
141 sq/ft width 11' 4" x depth 12' 6"
141 sq/ft width 11' 4" x depth 12' 6"
135 sq/ft width 12' 6" x depth 10' 10"
117 sq/ft width 11' 2" x depth 10' 6"
64 sq/ft width 6' 2" x depth 10' 6"
548 sq/ft width 23' 4" x depth 23' 6"
259 sq/ft width 17' 4" x depth 15'
162 sq/ft width 12' 6" x depth 13'
46 sq/ft width 6' x depth 7' 8"
106 sq/ft width 9' 10" x depth 10' 10"
204 sq/ft width 13' 2" x depth 15' 6"
Master Walk-In Closet:
70 sq/ft width 9' 10" x depth 7' 2"
Porch - Front:
97 sq/ft width 19' 6" x depth 5'
Porch - Rear:
238 sq/ft width 30' 6" x depth 7' 10"
47 sq/ft width 9' 10" x depth 4' 10"
What's included in this plan set
See a sample plan set
*See important information before purchasing
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

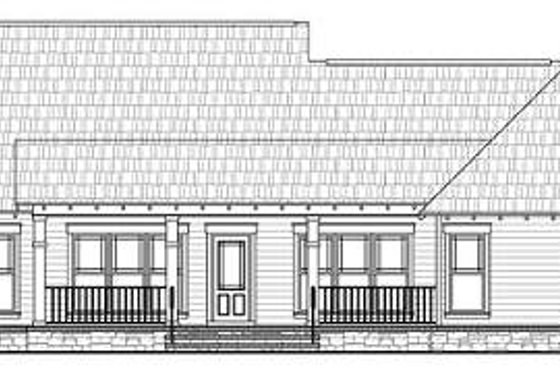

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
5 Copy Set
5 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
