With an open living core, this plan is loaded with features including an elevated ceiling, built-in fireplace, eating bar, and covered deck. Storage abounds with walk-in closets in all bedrooms, a mudroom with lockers and coat closet and a dedicated space in the garage. The placement of Bedroom 3 offers flexibility to become a home office, den, or even a lounge area.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

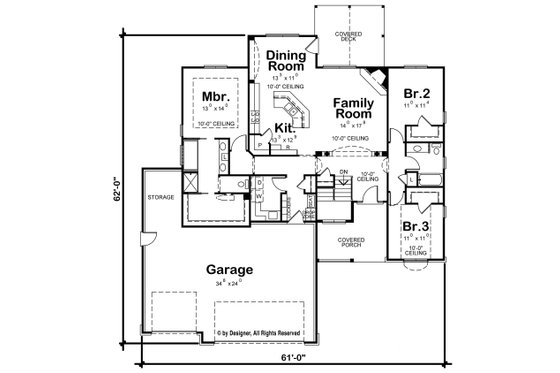

Floor Plan - Main Floor Plan
Floor Plan - Other Floor Plan
Full Specs & Features
Depth : 62'
Height : 23' 6"
Garage : 910 sq/ft
Main Floor : 1826 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Tray ceiling in Master Bedroom
Main Ceiling : 10'
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Asphalt Shingle
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2 x 4
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
What's included in this plan set
See a sample plan set
*See important information before purchasing
Cover Page: Front elevation and informative reference sections including: general notes and design criteria

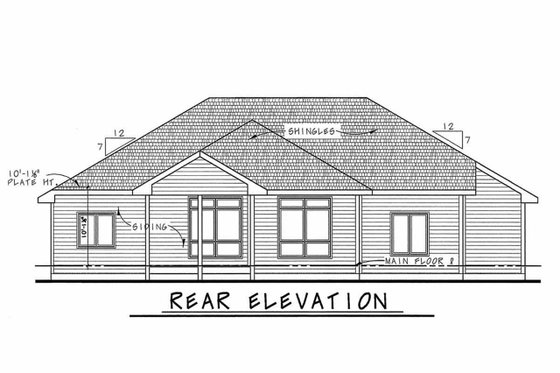

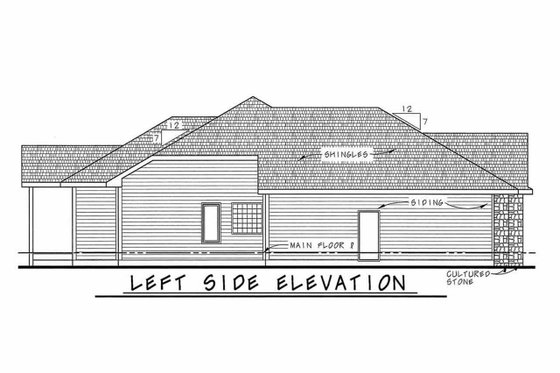

Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
