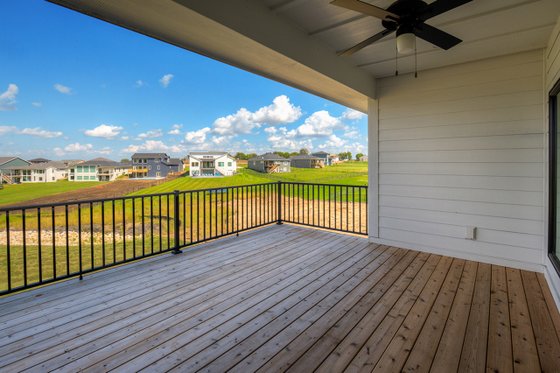

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Exterior - Covered Porch

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Entry

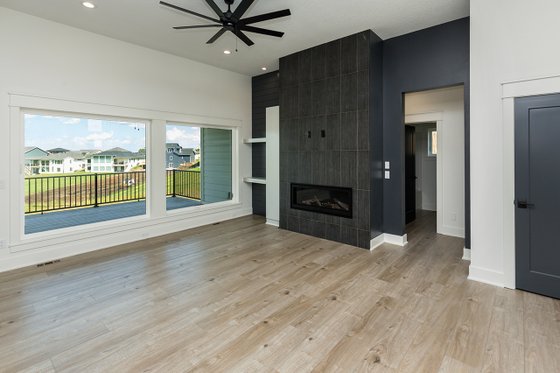

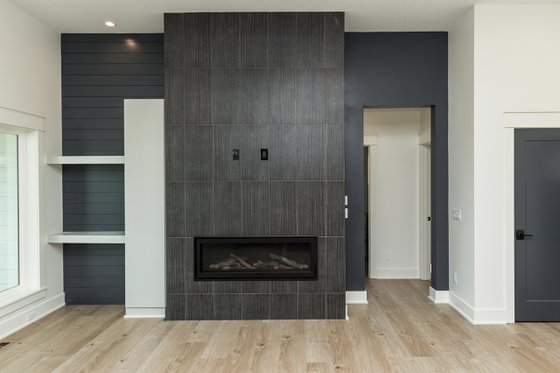

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Family Room

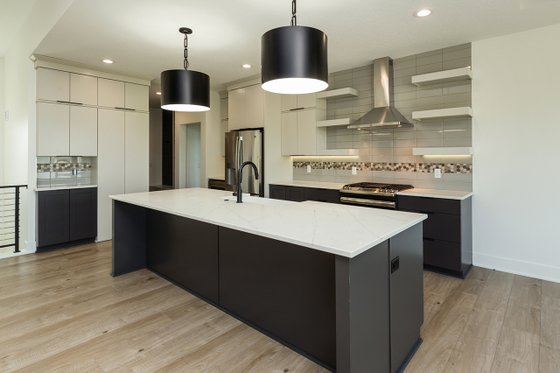

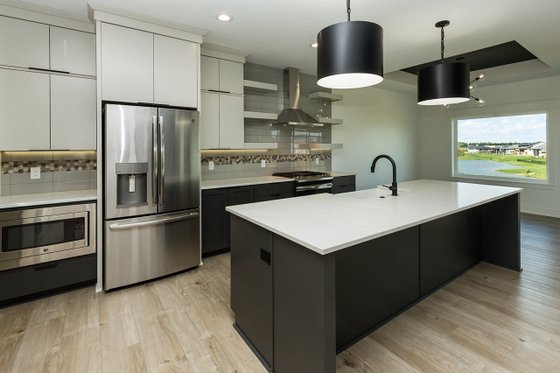

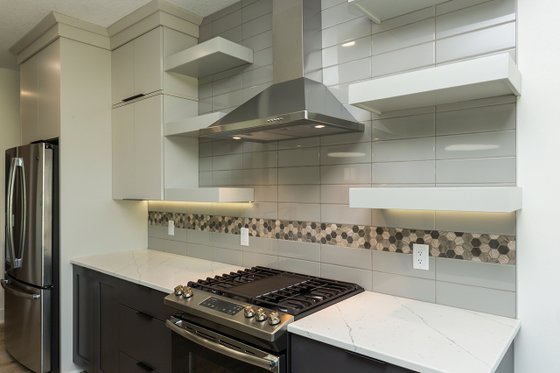

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Kitchen

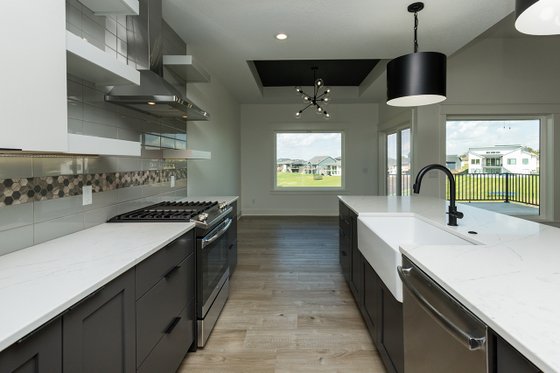

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Dining Room

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Other

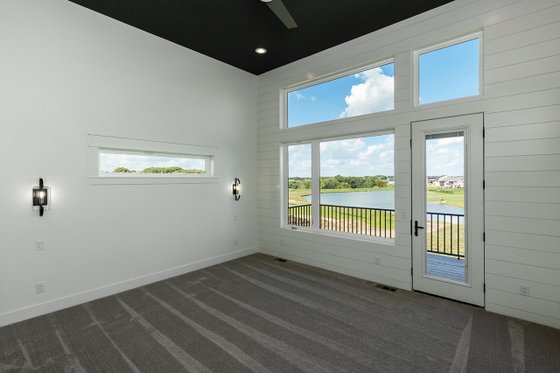

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Master Bedroom

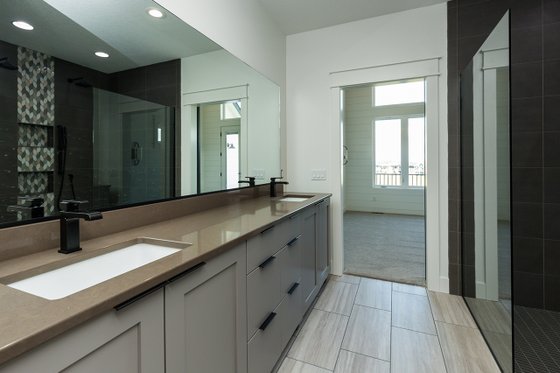

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Master Bathroom

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Bedroom

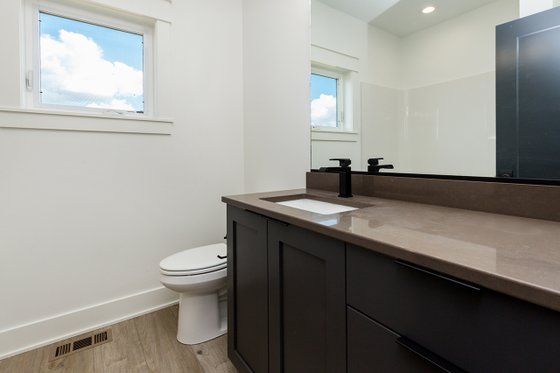

Ranch Style House Plan - 3 Beds 2 Baths 1837 Sq/Ft Plan #70-1477 Interior - Bathroom

Plan 70-1477

Photographs may show modified designs.

Select Plan Set Options What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$295.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Home Furniture Planner	$19.00
	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $40.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$930.00

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions?

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Phone: 1-800-913-2350

Hours Mon‑Fri, 9 am‑8:30 pm (EST)

Plan 70-1477

Key Specs

1837
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Plan Description

Smart design choices make this house plan live large. The open floor plan between the kitchen and great room creates an easygoing flow and allows the home to feel larger than it is. A fireplace warms the great room and adds cozy charm. Owners will enjoy their private master suite and spacious walk-in closet. Need to stay organized? Lockers just off the three-car garage provide a place to put items during busy transitions. Other highlights we love: the generous walk-in pantry and outdoor living space. This plan is not available for construction in any zip code within a 30 mile radius of Urbandale, IA. This includes the following zip codes: 50001, 50003, 50007, 5009-50014, 50021, 50023, 50032, 50033, 50035, 50037-50039, 50046. 50047, 50054, 50055, 50061, 50063, 50066, 50069, 50070, 50072, 50073, 50109, 50111, 50118, 50124, 50125, 50134, 50146, 50152, 50156, 50160, 50161, 50166-50169, 50211, 50218, 50220, 50226, 50228, 50229, 50233, 50237, 50240, 50241, 50243, 50244, 50250, 50261, 50263, 50265, 50266, 50273, 50276, 50301-50323, 50325, 50327-50336, 50338-50340, 50347, 50350, 50359-50364, 50367-50369, 50380, 50381, 50391-50398, 50936, 50940, 50947, 50950, 50980, 50981.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

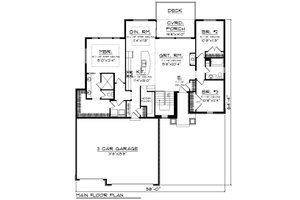

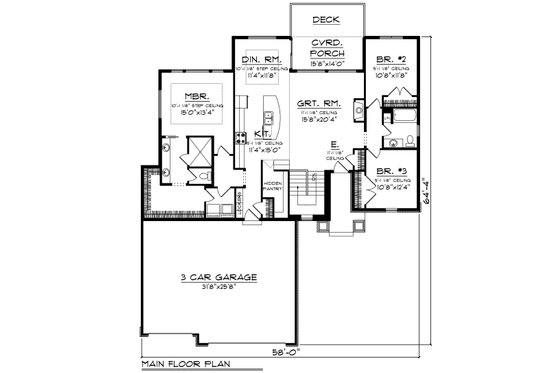

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 3

Dimension

Depth : 64' 4"

Height : 0"

Width : 58'

Area

Total : 1837 sq/ft

Garage : 617 sq/ft

Main Floor : 1837 sq/ft

Porch : 195 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 11' ceiling in Great Room & Foyer; 9' to 10' step ceiling in Dining Area & Master Bedroom

Main Ceiling : 9' 1"

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 45 psf

Roof Type : Shingle

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding

Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

width 10' 8" x depth 11' 8"

Bedroom 3:

width 10' 8" x depth 12' 4"

Dining Room:

width 11' 4" x depth 11' 8"

Great Room:

width 15' 8" x depth 20' 4"

Kitchen:

width 11' 4" x depth 15'

Master Bedroom:

width 15' x depth 13' 4"

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
