Plan 430-54

Photographs may show modified designs.
Plan 430-54

Key Specs

sq ft





Plan Description

Every square foot is used wisely in this four-bedroom, one-story home. On the left, the master suite provides a surprisingly luxurious retreat for homeowners with a huge walk-in closet, a jet tub, and more. On the opposite side, three more bedrooms have use of the hall bath, where double sinks make it easier to share. Everyone can meet in the fireplace-warmed great room. A raised bar offers space for casual meals, with the open dining room just steps away. Take a look and you will be amazed.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

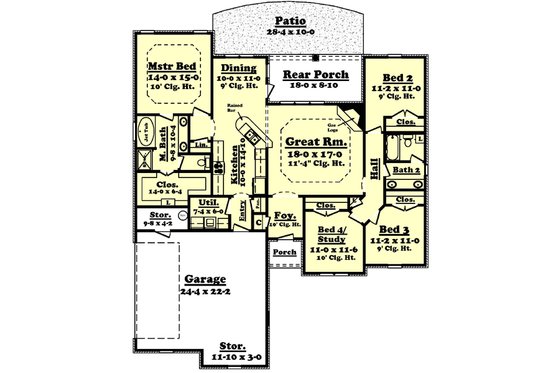

Floor Plan - Main Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 2
Stories: 1
Garages: 2


Depth : 63'
Height : 24' 9"
Width : 54' 10"


Total : 1850 sq/ft
First Floor: 1850 sq/ft height 9'
Garage: 562 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Trayed ceiling in Great Rm.Trayed ceiling in Mstr. Bed10' ceilings in Bed 4/Study & Foyer
Garage Ceiling : 9'
Main Ceiling : 9'


Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 40
Roof Type : hips/gables
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : brick
Framing : 2"x4"
Insulation : R13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms

Additional Room Features

Great Room Living Room
Main Floor Laundry
Storage Area

Lot Characteristics

Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Code Compliance

Irc 2003
Irc 2006


Bedroom 2:

123 sq/ft width 11' 2" x depth 11'

Bedroom 3:

123 sq/ft width 11' 2" x depth 11'

Bedroom 4/ Study:

127 sq/ft width 11' x depth 11' 6"

Covered Rear Porch:

159 sq/ft width 18' x depth 8' 10"

Dining Room:

110 sq/ft width 10' x depth 11'


562 sq/ft width 24' 4" x depth 22' 2"

Garage Storage Area:

35 sq/ft width 11' 10" x depth 3'

Great Room:

306 sq/ft width 18' x depth 17'


148 sq/ft width 10' x depth 14' 10"

Master Bath:

100 sq/ft width 9' 8" x depth 10' 4"

Master Closet:

89 sq/ft width 14' x depth 6' 4"

Master Suite:

210 sq/ft width 14' x depth 15'

Rear Patio:

283 sq/ft width 28' 4" x depth 10'

Storage Room:

40 sq/ft width 9' 8" x depth 4' 2"

Utility Room:

49 sq/ft width 7' 4" x depth 6' 9"

What's included in this plan set

See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions.

*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.


Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

A list of building supplies needed to construct the infrastructure of your new house.

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
