Plan #124-1028

Key Specs


  • 1859 sq/ft

  • 3 Bedrooms

  • 2.5 Baths

  • 2 Floors

  • 2 Garage

Plan Description

This charming cottage bungalow home plan is designed to fit neatly on a narrow lot. As you enter the Nantucket you are greated by a vaulted foyer and the stairs leading up to the secondary bedrooms. On the right through a set of double sliding doors is a den that can also be used as a home office, library or as flex space for your family. The end of the foyer opens up to the great room style living area with a fireplace nestled in the corner of the living room.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

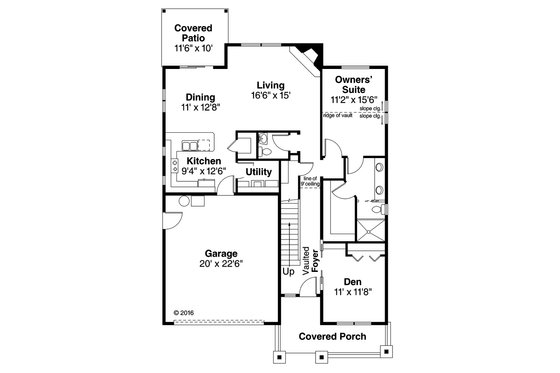

Floor Plan - Main Floor Plan
Bungalow Style House Plan - 3 Beds 2.50 Baths 1859 Sq/Ft Plan #124-1028 Floor Plan - Main Floor Plan

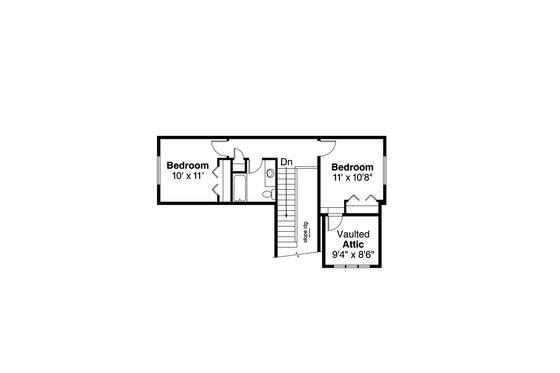

Floor Plan - Upper Floor Plan
Bungalow Style House Plan - 3 Beds 2.50 Baths 1859 Sq/Ft Plan #124-1028 Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2.5
Stories : 2
Garages : 2

Dimension

Height : 22'
Depth : 62'
Width : 40'

Area

Total : 1859 sq/ft
Garage : 474 sq/ft
Upper Floor : 458 sq/ft
Main Floor : 1401 sq/ft
Storage : 93 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Load : 25
Primary Pitch : 6/12
Roof Framing : Truss/Stick

Exterior Wall Framing

Exterior Wall Finish : Siding/Shingle/Stone
Framing : 2x6

Bedroom Features

Upstairs Bedrooms
Split Bedrooms
Main Floor Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Storage Area
Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

What's included in this plan set

See a sample plan set

Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $915.00 5 printed plan sets mailed to you.
PDF Set Best Value! $915.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set $1070.00 8 printed plan sets mailed to you.
CAD Set $2025.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set $625.00 One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab $200.00 Ideal for level lot, single layer concrete poured directly on grade.
Basement $285.00 Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
