Plan 17-2402

Photographs may show modified designs.
Plan 17-2402

Key Specs


Plan Sq Ft

1875
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

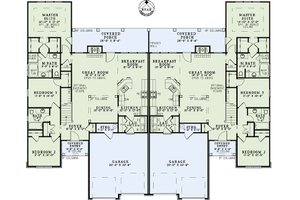

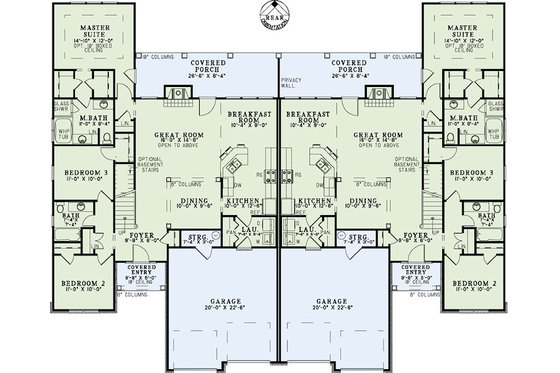

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 68' 6"
Height : 26'
Width : 84' 2"

Area

Total : 1875 sq/ft
Bonus: 233 sq/ft
Bonus: 233 sq/ft
First Floor: 1588 sq/ft height 9'
First Floor: 1588 sq/ft height 9'
Garage: 480 sq/ft
Garage: 480 sq/ft
Porch: 200 sq/ft
Porch: 200 sq/ft
Second Floor: 287 sq/ft height 8'
Second Floor: 287 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 45
Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : Stone
Framing : 2"x4"
Insulation : R13

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Media Room
Play Flex Room
Storage Area

Outdoor Spaces

Covered Rear Porch

More

Jack & Jill Bath

Rooms

Bathroom 2:

53 sq/ft width 7' 4" x depth 7' 4"

Bathroom 2:

53 sq/ft width 7' 4" x depth 7' 4"

Bathroom 3:

57 sq/ft width 7' 2" x depth 8'

Bathroom 3:

57 sq/ft width 7' 2" x depth 8'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Bedroom 4:

121 sq/ft width 11' x depth 11'

Bedroom 4:

110 sq/ft width 11' x depth 10'

Bonus Room - Unfinished:

155 sq/ft width 10' x depth 15' 6"

Bonus Room - Unfinished:

155 sq/ft width 10' x depth 15' 6"

Breakfast Room:

92 sq/ft width 10' 4" x depth 9'

Breakfast Room:

92 sq/ft width 10' 4" x depth 9'

Covered Porch:

220 sq/ft width 26' 6" x depth 8' 4"

Covered Porch:

220 sq/ft width 26' 6" x depth 8' 4"

Dining Room:

85 sq/ft width 10' x depth 8' 6"

Dining Room:

95 sq/ft width 10' x depth 9' 6"

Entry:

48 sq/ft width 9' 8" x depth 5'

Entry:

48 sq/ft width 9' 8" x depth 5'

Foyer:

58 sq/ft width 9' 8" x depth 6'

Foyer:

58 sq/ft width 9' 8" x depth 6'

Garage:

450 sq/ft width 20' x depth 22' 6"

Garage:

453 sq/ft width 20' x depth 22' 8"

Great Room:

234 sq/ft width 16' x depth 14' 8"

Great Room:

234 sq/ft width 16' x depth 14' 8"

Kitchen:

125 sq/ft width 10' x depth 12' 6"

Kitchen:

125 sq/ft width 10' x depth 12' 6"

Laundry Room:

41 sq/ft width 7' 6" x depth 5' 6"

Laundry Room:

48 sq/ft width 7' 6" x depth 6' 6"

Master Bathroom:

91 sq/ft width 11' x depth 8' 4"

Master Bathroom:

91 sq/ft width 11' x depth 8' 4"

Master Suite:

177 sq/ft width 14' 10" x depth 12'

Master Suite:

177 sq/ft width 14' 10" x depth 12'

Storage:

21 sq/ft width 7' 4" x depth 3'
