A uniquely vaulted gathering space fills the heart of this home. It’s open to the kitchen across a large work island rimmed by a curved eating bar. The large screened porch at the rear is ideal for outdoor dining, and hanging out on long summer evenings. Flames in the two-sided gas fireplace can be enjoyed from both the living room and owners’ suite.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

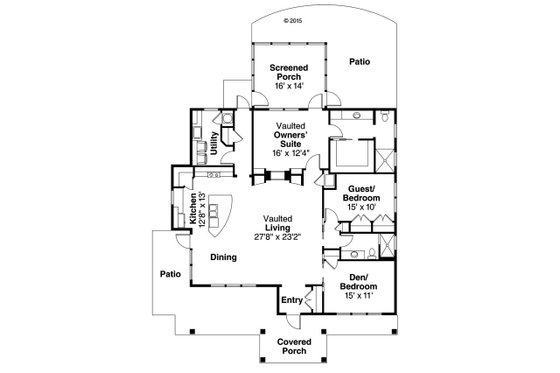

Floor Plan - Main Floor
Full Specs & Features
Depth : 68'
Height : 20' 2"
Main Floor : 1881 sq/ft
Porch : 224 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 5/12
Roof Framing : Truss/Stick
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : 2x6
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Suited For Vacation Home
