Plan 472-7

Photographs may show modified designs.
Plan 472-7

Key Specs


1905
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


Enter this Retro Urban styled house and you will find a home designed for today's living with the open Island Kitchen and Dining. You step down beyond the bookshelves into the Living Room and up the open tread stairs to the second floor which boasts an outdoor living Balcony. The Master Bedroom is conveniently located on the main floor and has His and Hers walk-in closets.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

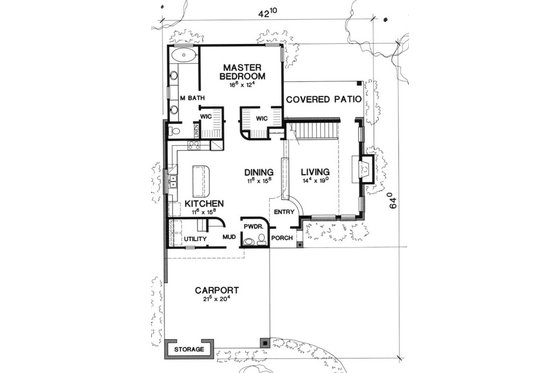

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 64'
Width : 42' 10"

Area

Total : 1905 sq/ft
Deck: 219 sq/ft
First Floor: 1300 sq/ft height 9'
Garage: 418 sq/ft height 9'
Porch: 27 sq/ft
Second Floor: 605 sq/ft height 9'
Storage: 35 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 3:12
Roof Framing : stick

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Storage Area

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch
Grill Deck Sundeck

Structural Information Provided

Foundation Drawing

Rooms

Bedroom 2:

137 sq/ft width 12' 10" x depth 10' 9"

Bedroom 3:

137 sq/ft width 12' 10" x depth 10' 9"

Carport:

435 sq/ft width 21' 5" x depth 20' 4"

Dining Room:

182 sq/ft width 11' 8" x depth 15' 8"

Kitchen:

180 sq/ft width 11' 6" x depth 15' 8"

Living Room:

272 sq/ft width 14' 4" x depth 19'

Master Bedroom:

203 sq/ft width 16' 6" x depth 12' 4"

What's included in this plan set


See a sample plan set
  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1095.00
5 printed plan sets mailed to you.

8 Copy Set

$1195.00
8 printed plan sets mailed to you.

CAD Set

$1995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$75.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$150.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
