This cottage style garage plan can house up to two cars. The two garage doors in the front are both 9' wide and 8' tall. An additional garage door is on the left and is 10' wide and 7' tall. In the back of the garage is a shop and storage space. Stairs along the left lead up to an apartment featuring a country kitchen, living room, 2 bedrooms and a full bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

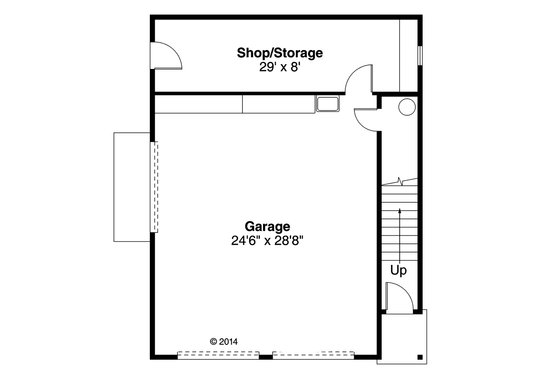

Floor Plan - Main Floor

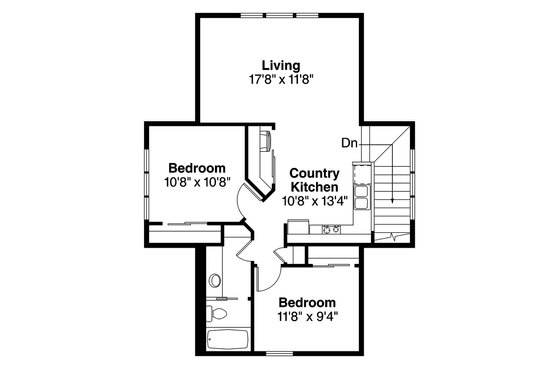

Floor Plan - Upper Floor
Full Specs & Features
Depth : 38'
Height : 22' 4"
Garage : 1117 sq/ft
Upper Floor : 799 sq/ft
