Plan 406-9655

Photographs may show modified designs.
Plan 406-9655

Key Specs


1927
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

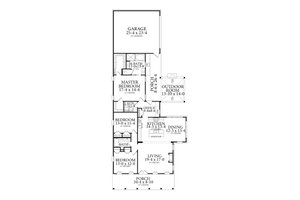

Floor Plan - Main Floor Plan

Reverse

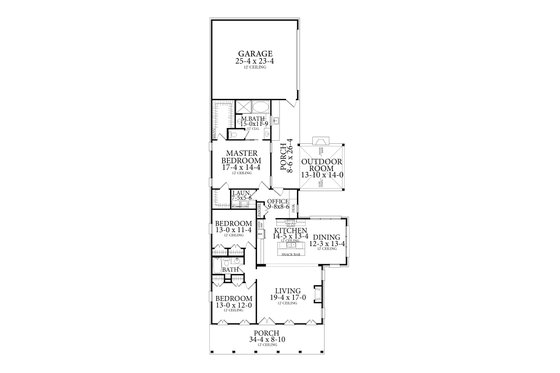

Ranch Floor Plan - Main Floor Plan Plan #406-9655

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 100' 2"
Height : 25' 9"
Width : 41' 7"

Area

Total : 1927 sq/ft
Garage : 655 sq/ft
Main Floor : 1927 sq/ft
Porch : 696 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Side Porch has vaulted ceiling
Main Ceiling : 12'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick & Stucco
Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry

Garage Features

Rear Garage
Side Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

More

Economical To Build
Empty Nester

Rooms

Bedroom 2:

width 13' x depth 11' 4"

Bedroom 3:

width 13' x depth 12'

Covered Front Porch:

width 41' 7" x depth 8' 10"

Dining Room:

width 12' 3" x depth 13' 4"

Garage:

width 25' 4" x depth 23' 4"

Kitchen:

width 14' 5" x depth 13' 4"

Laundry:

width 7' 5" x depth 5' 6"

Living Room:

width 19' 4" x depth 17'

Master Bath:

width 15' x depth 11' 9"

Master Bedroom:

width 17' 4" x depth 14' 4"

Office :

width 9' 8" x depth 8' 6"

Outdoor Room:

width 13' 10" x depth 14'

Side Porch:

width 8' 6" x depth 26' 4"

What's included in this plan set


See a sample plan set
  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$965.00
5 printed plan sets mailed to you.

8 Copy Set

$1045.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1100.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$400.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$255.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$255.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
