The kitchen sits at the heart of this country-style home. From there, kitchen workers can face out across an eating bar into the bright and lofty vaulted great room, dining room, and vaulted and covered patio. Ownersâ€™ suite amenities include a large walk-in closet, plus a two-section bathroom with a dual vanity and enclosed toilet and shower.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

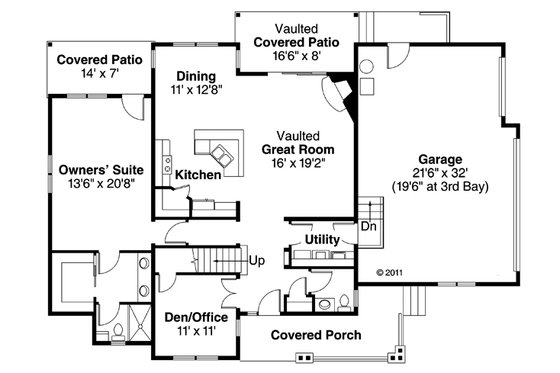

Floor Plan - Main Floor

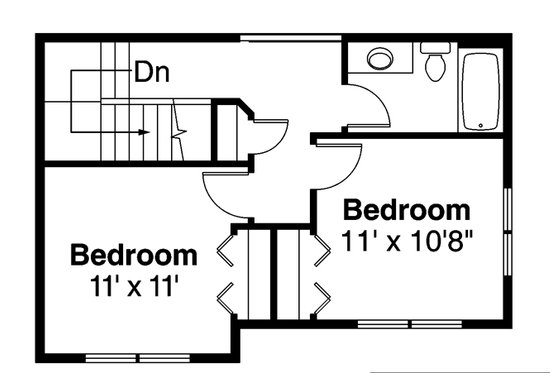

Floor Plan - Upper Floor
Full Specs & Features
First Floor: 1496 sq/ft height 9'
Garage: 706 sq/ft height 9'
Second Floor: 452 sq/ft height 9'
