Enter the wide open Great Room to find a built-in wall entertainment
center. French doors will lead you out onto the rear covered porch. The
Kitchen is perfect for entertaining. Open to the Great Room and
Breakfast Area - you will never feel left out of family time again.
There is plenty of cabinets for storage and a large island with a raised
snack bar for serving a quick snack. Just off the Kitchen is an open
Breakfast Area with windows that allow plenty of sunshine to brighten
the day. The Dining Room is tucked into the front of the house with
large arched openings. A huge walk-in pantry with lots of shelving is
located close for extra storage. A large Laundry Room comes with plenty
of room for the washer and dryer, there's even a spot for an upright
freezer. A half Bath is located just off the Rear Hall for easy access.
The nice sized Master Bedroom has a large walk-in closet. French doors
lead out onto the rear covered porch located to the rear of the home for
privacy. The Master Bath has dual sinks, jetted tub, separate shower and
an enclosed toilet compartment. Bedrooms 2 & 3 are conveniently located
on the same side of the house to accommodate someone with small children
or elderly parents. Bathroom 2 is nestled in between the two bedrooms.
This plan is enveloped by two large covered porches that are perfect for
rest, relaxation and protection from the elements.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

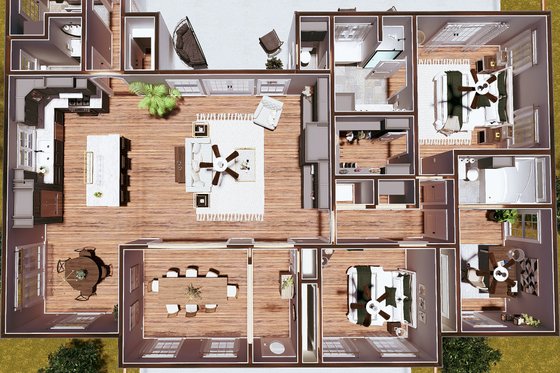

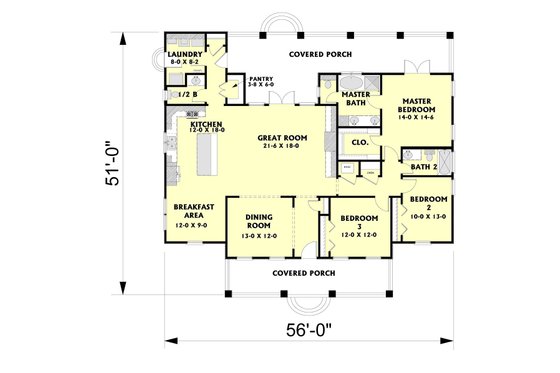

Floor Plan - Main Floor
Floor Plan - Other Floor
Floor Plan - Other Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 51'
Height : 23' 8"
First Floor: 1958 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Structural Information Provided
130 sq/ft width 10' x depth 13'
144 sq/ft width 12' x depth 12'
108 sq/ft width 12' x depth 9'
156 sq/ft width 13' x depth 12'
387 sq/ft width 21' 6" x depth 18'
216 sq/ft width 12' x depth 18'
203 sq/ft width 14' x depth 14' 6"
Porch - Front:
226 sq/ft width 32' 4" x depth 7'
Porch - Rear:
344 sq/ft width 43' x depth 8'
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
