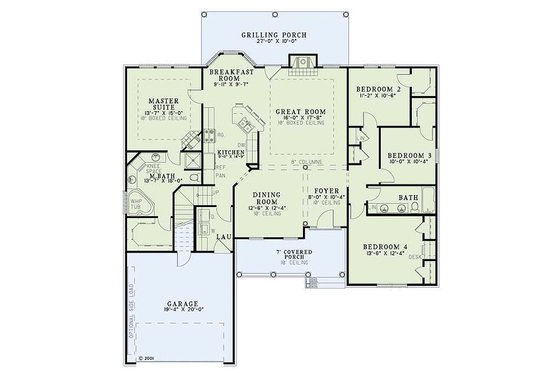

Tall columns and 10' ceilings add elegance to an open floor plan in this
split bedroom home. The foyer flows effortlessly into the dining and
great rooms. The bay-windowed breakfast room provides a sunny
alternative to the formal dining room and affords a lively view of the
back yard and grilling porch. With a large whirlpool tub, boxed ceiling
and cozy corner fireplace, the master suite is truly a private
Roof Framing: 2x6
Exterior Walls: R-13
Ceiling Minimum: R-30
Floor Minimum: R-19
Designed Roof Load: 45 lbs. psf lbs. psf
Roof Pitch - Main: 10:12
Roof Pitch - Front Gable: 10:12
Roof Pitch - Porch: 10:12
Roof Pitch - Garage: 10:12
Roof Framing Description: Conventional
Roof Type: Shingle
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (walk out is not shown on elevations unless finished walk out)
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
