Plan 20-2173

Photographs may show modified designs.
Plan 20-2173

Key Specs


9360
sq ft

6
Beds

6.5
Baths

2
Floors

4
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

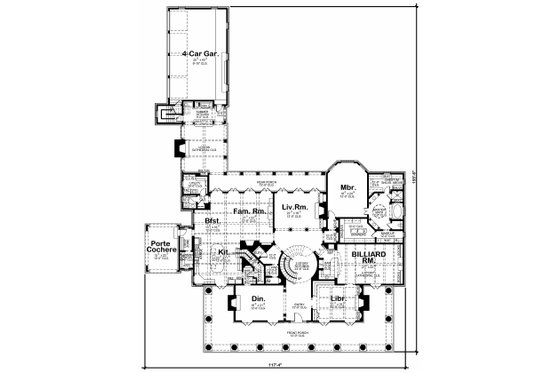

Floor Plan - Main Floor Plan

Reverse

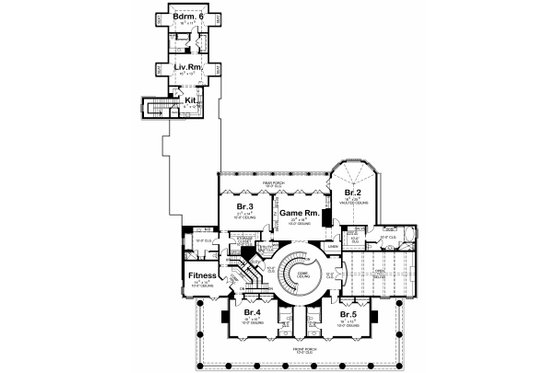

Floor Plan - Upper Floor Plan

Reverse

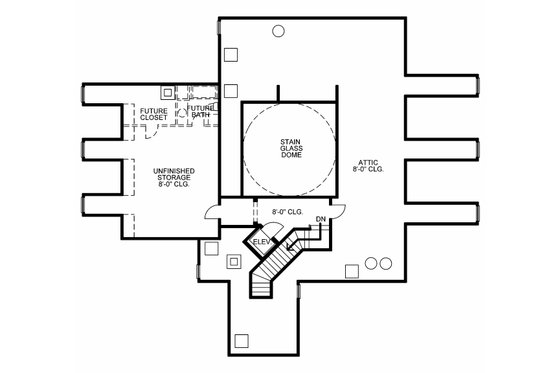

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 6
Baths : 6.5
Stories: 2
Garages: 4

Dimension

Depth : 155' 6"
Height : 41' 1"
Width : 117' 4"

Area

Total : 9360 sq/ft
Bonus: 665 sq/ft
First Floor: 5580 sq/ft height 12'
Garage: 1173 sq/ft
Porch: 3852 sq/ft
Second Floor: 3780 sq/ft height 10'
Storage: 1847 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 12'
Upper Ceiling Ft : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Stick
Roof Type : Shake

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Upstairs Laundry

Garage Features

Carport Porte Cochere
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Wrap Around Porch

Rooms

Bedroom 2:

462 sq/ft width 18' x depth 25' 8"

Bedroom 3:

310 sq/ft width 21' 5" x depth 14' 6"

Bedroom 4:

293 sq/ft width 19' 7" x depth 15'

Bedroom 5:

267 sq/ft width 19' 7" x depth 13' 8"

Bedroom 6:

184 sq/ft width 16' x depth 11' 6"

Billiards Room:

472 sq/ft width 21' x depth 22' 6"

Breakfast:

216 sq/ft width 13' 6" x depth 16'

Dining Room:

348 sq/ft width 16' x depth 21' 9"

Family Room:

472 sq/ft width 21' x depth 22' 6"

Fitness Room:

200 sq/ft width 14' x depth 14' 4"

Game Room:

434 sq/ft width 23' 6" x depth 18' 6"

Garage:

1103 sq/ft width 25' 8" x depth 43'

Kitchen:

358 sq/ft width 20' 6" x depth 17' 6"

Kitchen:

118 sq/ft width 9' 7" x depth 12' 4"

Library:

340 sq/ft width 21' 3" x depth 16'

Living Room:

352 sq/ft width 22' x depth 16'

Living Room:

208 sq/ft width 16' x depth 13'

Loggia:

454 sq/ft width 20' 6" x depth 22' 2"

Master Bathroom:

255 sq/ft width 15' 6" x depth 16' 6"

Master Bedroom:

441 sq/ft width 18' x depth 24' 6"

Master Closet:

108 sq/ft width 15' 6" x depth 7'

Master Closet Two:

181 sq/ft width 16' 6" x depth 11'

Porch - Front:

1186 sq/ft width 85' 9" x depth 13' 10"

Porch - Rear:

503 sq/ft width 53' x depth 9' 6"

Port Cochere:

332 sq/ft width 15' x depth 22' 2"
