This remarkably flexible layout features a hardworking zone at the entrance from the garage. On the right, closet space holds coats and boots, while the adjoining laundry room makes it easy for pet owners to grab a leash and go for a walk out the side door. To the left, a study can easily serve as bedroom three, complete with private access to the hall bath. The main gathering areas flow into one another, from the kitchen's cooktop island to the dining and great rooms. A screen porch invites outdoor entertaining in less-than-perfect weather. Owners will appreciate the master suite's double walk-in closets and large bedroom. Skylights brighten the large bonus room upstairs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

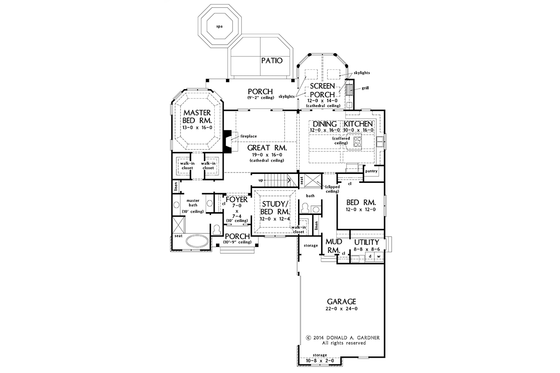

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 81' 2"
Height : 25' 10"
Bonus: 664 sq/ft
First Floor: 1986 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Bedroom 2/ Study:
148 sq/ft width 12' x depth 12' 4"
144 sq/ft width 12' x depth 12'
Covered Front Porch:
Covered Rear Porch:
192 sq/ft width 12' x depth 16'
51 sq/ft width 7' x depth 7' 4"
606 sq/ft width 22' x depth 24'
21 sq/ft width 10' 8" x depth 2'
304 sq/ft width 19' x depth 16'
160 sq/ft width 10' x depth 16'
208 sq/ft width 13' x depth 16'
Optional Bonus Room:
Screened Rear Porch:
199 sq/ft width 12' x depth 14'
74 sq/ft width 8' 8" x depth 8' 6"
What's included in this plan set
See a sample plan set
*See important information before purchasing
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
