Plan 542-3

Key Specs


1989
sq ft

3
Beds

4
Baths

2
Floors

1
Garages

Plan Description


This eye-catching modern plan with segmented construction design pays homage to the 1980’s 'Deconstructivist Architecture' movement. External pedestrian spaces are interrupted by pools of water to allow a cooling-effect during the hot summer periods. The fragmentation allows alternating uses of building materials to create strikingly interesting exterior and interior spaces which are both energy efficient and eco-friendly.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

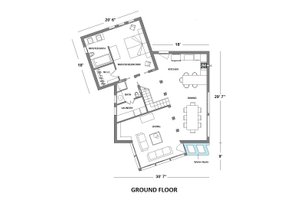

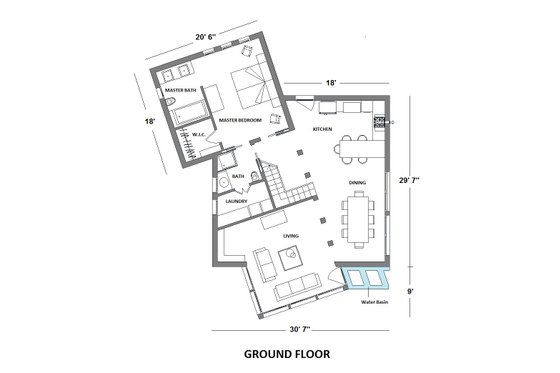

Floor Plan - Main Floor Plan

Reverse

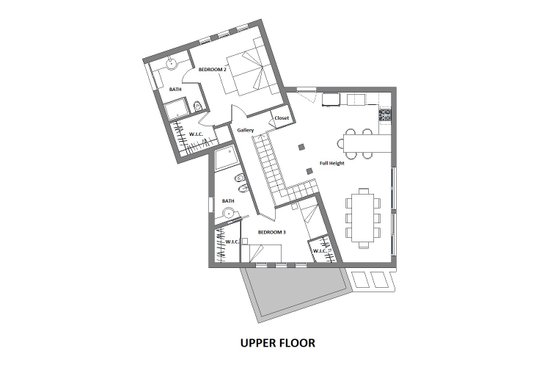

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 4
Stories: 2
Garages: 1

Dimension

Depth : 50'
Height : 23'
Width : 41'

Area

Total : 1989 sq/ft
Garage : 296 sq/ft
Main Floor : 1270 sq/ft
Upper Floor : 719 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'
Main Ceiling : 12'
Upper Ceiling Ft : 9'

Exterior Wall Framing

Exterior Wall Finish : Brick/plaster
Insulation : Eco-friendly material

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry

Garage Features

Carport Porte Cochere

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Courtyard

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$850.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$950.00
5 printed plan sets mailed to you.

8 Copy Set

$1070.00
8 printed plan sets mailed to you.

Reproducible Set

$1070.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1690.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$750.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$400.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Meet the Designer - Lucia Strona

Lucia Strona - Houseplans.com
